VCXO square wave output

High-Performance VCXO with Square Wave Output - 122.88MHz, ±10ppm, Ultra-Low Phase Noise

Precision 122.88MHz VCXO Featuring CMOS Square Wave Output for Critical Timing Applications

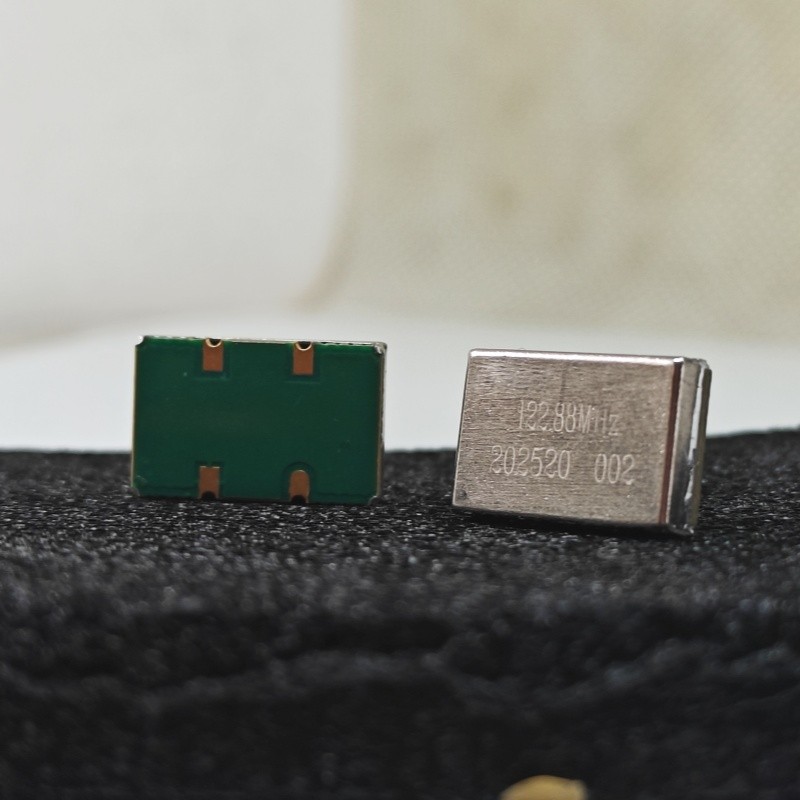

This VCXO with square wave output delivers exceptional frequency stability at 122.88MHz, making it ideal for high-speed communication and network equipment. The oscillator provides CMOS-compatible square wave output with outstanding frequency accuracy of ≤±10ppm at 25°C±2°C, ensuring reliable synchronization in demanding systems.

Output Characteristics	Frequency	122.88MHz
	Output	Square Wave
	Load	15pF
		“1” Level≥2.4V
	High/Low Level	“0”Level≤0.4V
	Rise/Fall Time	≤6ns
	Duty Cycle	50%±5%
Frequency stability	Frequency accuracy	≤±10ppm @25℃±2℃ , Voltage Control 1.65V
Frequency stability	Frequency Temperature Accuracy	≤±20ppm @-40℃~+95℃
Phase noise @25℃	@10Hz	≤-83dBc/Hz
	@100Hz	≤-113dBc/Hz
	@1KHz	≤-140dBc/Hz
	@10KHz	≤-161dBc/Hz
	@100KHz	≤-170dBc/Hz
	@1MHz	≤-174dBc/Hz
	@10MHz	≤-175dBc/Hz
Voltage control characteristics	Regulating Voltage	1.65V±1.65V
	Adjustment range	≥±25ppm
	Slope	Positive slope
	Slope	Positive slope
	Input insistance	≥100KΩ
Supply voltage/current@25℃	Working voltage	3.3V±5%
Supply voltage/current@25℃	Current	≤30mA
Environmental mechanical conditions	Working temperature range	-40℃~+95℃
Environmental mechanical conditions	Storage temperature range	-40℃~+95℃

This 122.88MHz VCXO combines ultra-low phase noise with precise square wave output, making it perfect for applications requiring both excellent frequency stability and clean digital clock signals. The device's 1.65V control voltage allows for fine frequency adjustments while maintaining optimal performance across temperature variations.
