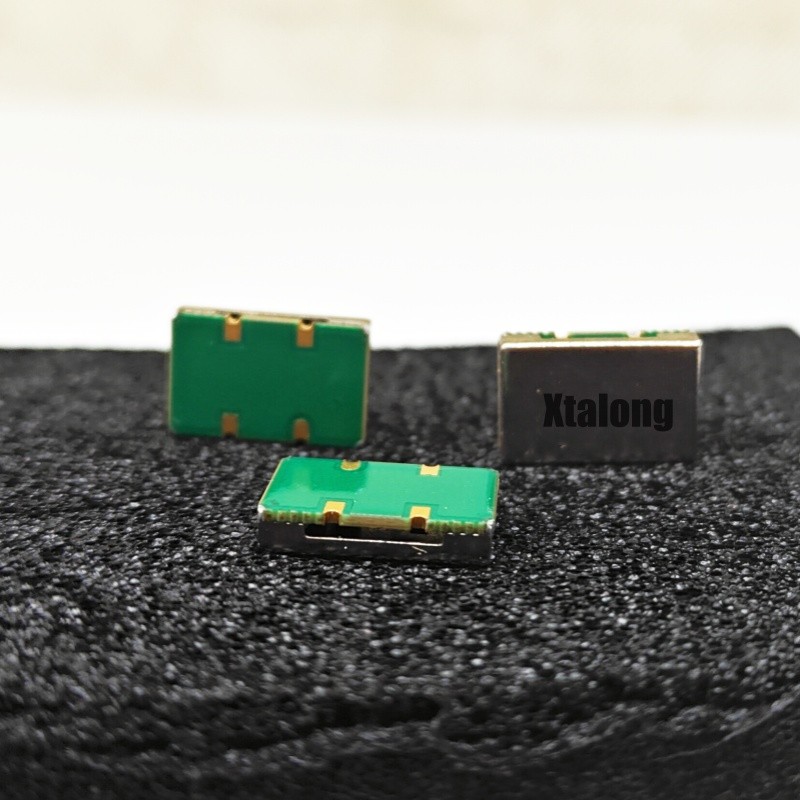

Voltage controlled oscillator

voltage controlled oscillator

Perfect for embedded systems, telecommunications, and IoT devices, this VCO offers excellent frequency control with robust performance. Compact and RoHS-compliant, it suits space-constrained designs.

Applications: Clock generation, FPGA/ASIC timing, wireless modules, and sensor interfaces.

Main data:

Frequency	26.000MHz
Output	CMOS
Load	15pF
High Level	0.9Vdd min
Low Level	0.1Vdd max
Rise/Fall Time	≤5ns
Duty Cycle	45%~55%
Current consumption	2mA Max.
Pulling Range	±100ppm min.
Absolute Pull range(APR)	±70ppm min.
Regulating Voltage	1.65V±1.65V
Working voltage	3.3V±5%
Linearity	10% max.
Modulation band width	15KHz min.
VC input impedance	5MΩ min.
Start-up time	2 mS max.
Operating temperature range	-40~85℃
Storage temprature range	-55~125℃
Aging	±3ppm
