SMD1409 100 mhz ocxo oscillator

Frequency: 100MHz
Voltage: 3.3V
Phase Noise: ≤-170dBc/Hz @100KHz

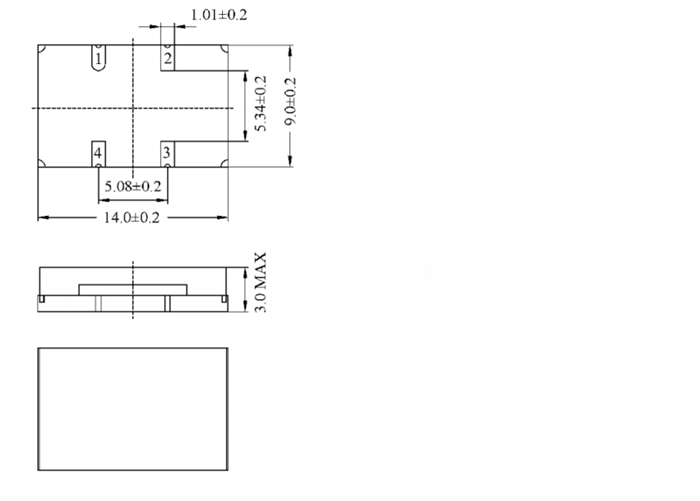

Dimension: SMD14*9mm

SMD1409 100MHz OCXO Oscillator – Ultra-Low Phase Noise (≤-170dBc/Hz @100KHz), 3.3V, High Stability SMD Crystal Oscillator for Precision Timing Applications.

Specifications

	Parameters	Technical Indicators		Remarks
Output Characteristics	Nominal Frequency	100.000MHz
	Waveform	Sinewave		50Ω
	Power	≥5dBm
	Harmonic Suppression	≤-25dBc
	Startup Time	≤10ms
	RMS Phase Jitter (12kHz~20MHz)	≤20fs
Frequency Stability	Ambient	≤±20ppm		@-40℃~+85℃
	Aging	≤±1ppm/year
	Frequency Accuracy	≤±10ppm		@25℃±2℃，voltage-controlled voltage 1.65V
Voltage/Current@25℃	Current	≤35mA
	Voltage	3.3V		±5%
Voltage Control（Frequency Fine Tuning）	Tuning Voltage Range	1.65V±1.65V
	Tuning Range	≥±25ppm
	Slope	Positive
	Linearity	＜10%
	Input Impedance	≥100KΩ
Phase Noise		Typ.	Max.	dBc/Hz
	10Hz		-80
	100Hz		-113
	1KHz		-140
	10KHz		-160
	100KHz		-170
Work Environment	Operating temperature	-40℃~85℃
	Storage Temperature	-55℃~105℃
