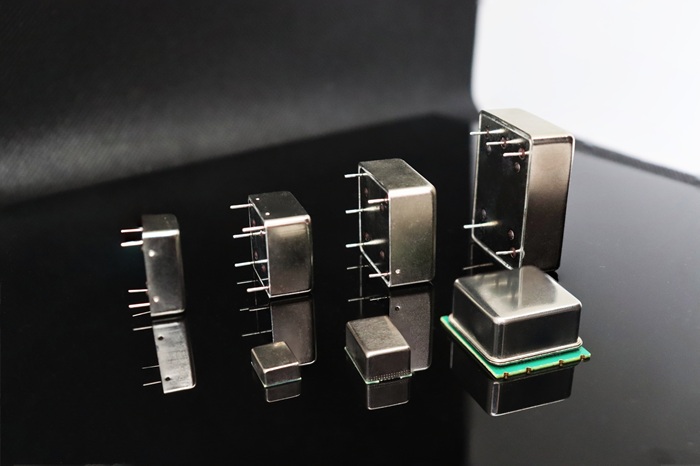

Introduction to OCXO Oscillator: Advantages, Features, and Application Fields

Currently, the OCXO oscillator stands at the forefront of high-end crystal oscillator series due to its exceptional precision and stability, surpassing other types such as voltage-controlled crystal oscillators (VCXO), temperature-compensated crystal oscillators (TCXO), and temperature-compensated voltage-controlled crystal oscillators (VC-TCXO).

Working Principle of the OCXO Oscillator

The OCXO oscillator is composed of a temperature-controlled oven circuit and an oscillator circuit. Its core working mechanism relies on maintaining the quartz crystal resonator at a constant temperature, significantly reducing frequency variations in the OCXO oscillator output caused by ambient temperature fluctuations.

Advantages and Features of the OCXO Oscillator

• Frequency stability of the OCXO oscillator typically ranges from ±0.0001 to 5 ppm within the same temperature range.

• The OCXO oscillator exhibits low phase noise and high resistance to environmental influences.

• It delivers high precision and stability, making the OCXO oscillator ideal for demanding applications.

        Currently, the best-performing OCXO oscillator (10–25 MHz) can achieve an accuracy of up to ±0.01 ppm after a 5-minute warm-up.

Application Fields of the OCXO Oscillator

1. Communication and navigation, radar systems, sensors, guidance systems, and sonar systems widely utilize the OCXO oscillator.

2. Measurement equipment, remote sensing, remote control, and telemetry applications benefit from the precision of the OCXO oscillator.

3. Mobile communications, network terminals, positioning and navigation, instruments and meters, digital devices, identification systems, and sensors rely on the OCXO oscillator.

4. In automotive electronics, engine control, autonomous driving, and GPS systems, the OCXO oscillator plays a critical role.
