The Important Role of Electronic Quartz in Vehicle Automatic Driving System

The Critical Role of Crystal Oscillators in Autonomous Vehicle Systems

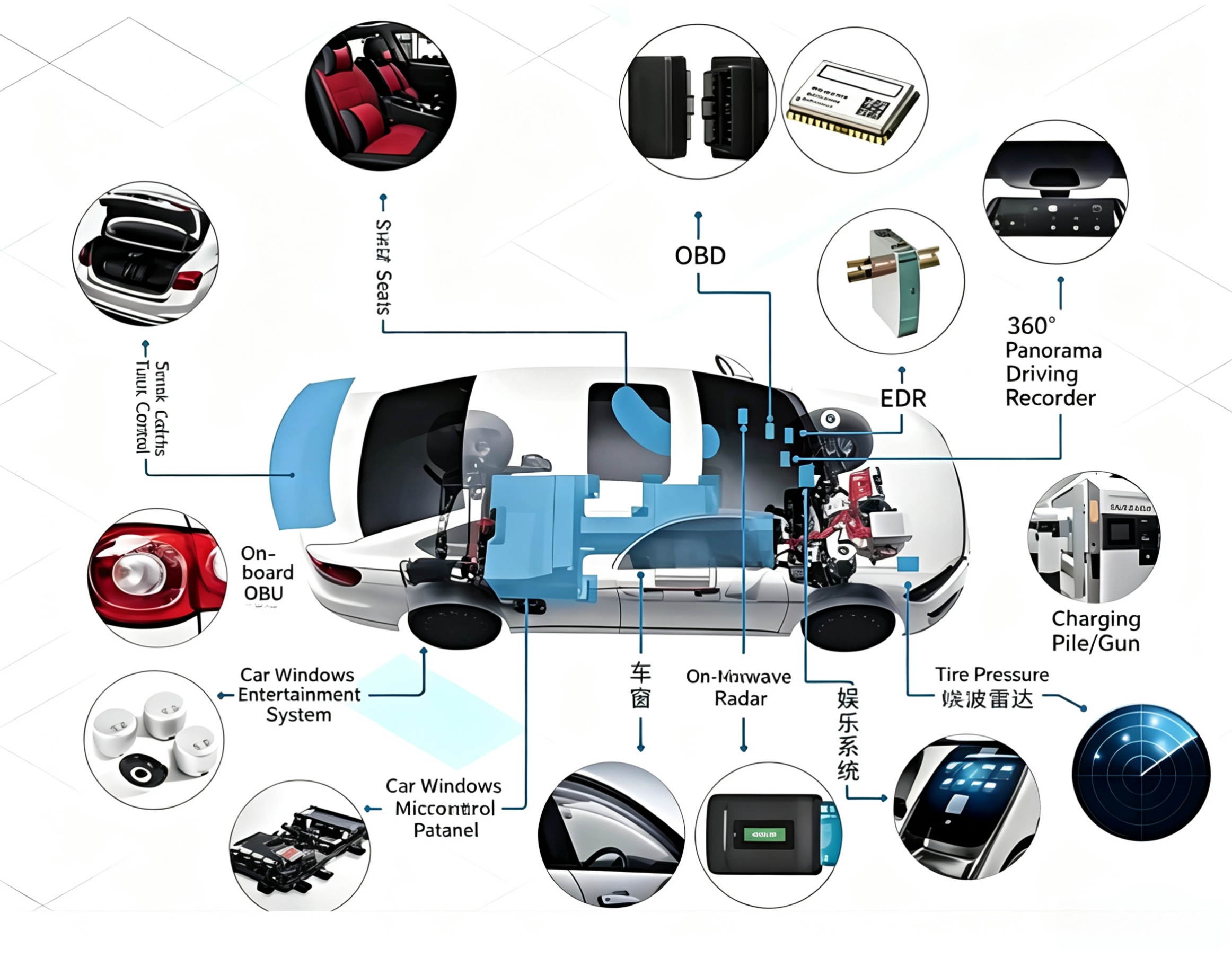

Introduction

The evolution of Autonomous Driving Systems (ADAS) has transformed modern vehicles into supercomputers on wheels. For a driverless vehicle to operate safely,

 it must process vast amounts of data from AI,visual computing units, radar, and GPS in real-time. At the heart of this complex architecture lies a small but indispensable component:

the Crystal Oscillator. These frequency control devices provide the precise  "heartbeat" required for high-speed data processing and synchronized communication between vehicle modules.

1. Vision Monitoring Systems (HD Cameras)

Autonomous vehicles utilize multiple high-definition (HD) cameras to identify traffic lights, pedestrians, and surrounding obstacles.

Key Components: Typically, SMD Crystals at 27MHz, 50MHz, and 54MHz are used.

The Role: These oscillators ensure stable signal transmission for image sensors and DSPs (Digital Signal Processors). Without a low-jitter clock source, video capture could suffer

 from frame drops or latency, which is unacceptable in high-speed driving scenarios.

2. Radar and LiDAR Ranging Modules

Radar and LiDAR (Light Detection and Ranging) systems are the "eyes" of the car, measuring distances to objects with centimeter-level accuracy.

Technological Requirement: These modules often require TCXOs (Temperature Compensated Crystal Oscillators), such as 26MHz or 38.4MHz.

Why TCXO? Vehicle exteriors experience extreme temperature fluctuations. A TCXO maintains frequency stability across a wide temperature range (typically -40°C to +105°C),

ensuring that radar pulses are sent and received with absolute timing precision for emergency braking and obstacle avoidance.

3. GNSS & GPS Positioning Modules

For a vehicle to navigate a 3D map, it needs real-time, high-precision global positioning.

Precision is Key: The TCXO 26MHz is the industry standard for GPS modules.

The Impact: Higher frequency stability directly correlates to faster "Time to First Fix" (TTFF) and centimeter-level positioning accuracy. In autonomous driving,

a deviation of a few centimeters can be the difference between staying in a lane or hitting a curb.

4. Central Processing Unit (CPU) & Data Fusion

The CPU is the "brain" that fuses data from cameras, radar, and GPS to make split-second driving decisions.

The Power of Differential Oscillators: This module requires Differential Crystal Oscillators (e.g., LVPECL or LVDS outputs).

Advantages: Differential oscillators can output two complementary signals, effectively cancelling out electromagnetic interference (EMI) and common-mode noise.

They provide the ultra-low jitter clock signals needed for high-speed buses like PCIe or 10GbE inside the vehicle's central computer.

Summary Table: Frequency Requirements in Autonomous Driving:

• Automotive Grade Standards: AEC-Q200

• In the automotive industry, standard consumer-grade crystals are not enough. All oscillators used in autonomous driving must meet the AEC-Q200 stress test qualification.

• This ensures the components can withstand:

• High Vibration: Constant road vibration.

• Thermal Shock: Rapid temperature changes.

• Longevity: A service life exceeding 10-15 years.

Conclusion

As AI continues to drive the future of transportation, the demand for high-reliability, automotive-grade crystal oscillators will only grow.

From 26MHz TCXOs for positioning to high-frequency differential oscillators for data fusion, these components are the unsung heroes ensuring the safety

and precision of the self-driving revolution.
