SMD1210 Crystal Unit

SMD1210 Ultra-Miniature Crystal Unit (1.2 x 1.0 x 0.3mm)

Product Overview

The SMD1210 series is an ultra-miniature, surface-mount quartz crystal unit specifically engineered for the next generation of compact electronics. Measuring just 1.2mm x 1.0mm, it provides a high-precision frequency reference (36MHz to 54MHz) while occupying minimal PCB real estate.

With excellent aging characteristics (±3ppm/year) and a robust industrial temperature range (-40°C to +85°C), the 1210 crystal is the go-to solution for engineers designing wearable technology, IoT modules, and high-density communication systems where signal integrity and space-saving are critical."

Key Features

• Ultra-Small Footprint: 1.2 x 1.0 mm, ideal for space-constrained designs.

• High Frequency Range: Optimized for 36MHz to 54MHz applications.

• Tight Tolerance: Available in ±15ppm and ±20ppm for precise timing.

• Industrial Grade: Reliable performance from -40°C to +85°C.

• Eco-Friendly: RoHS compliant and Lead-free.Technical Specifications:

Parameter Specification

1. Frequency Range 36.000 MHz to 54.000 MHz

2. Frequency Tolerance (at 25℃) ±15ppm, ±20ppm (or custom)

3. Frequency Stability ±15ppm, ±20ppm (Over -40~+85℃)

4. Load Capacitance (CL) 8pF, 10pF, or specify

5. Shunt Capacitance (C0) 5.0 pF Max

6. Drive Level 10μW (50μW Typ., 100μW Max)

7. Aging Rate ±3 ppm / year Max

8. Dimensions 1.2 x 1.0 x 0.3 mm

9. Tape & Reel Packaging 3,000 pcs / Reel

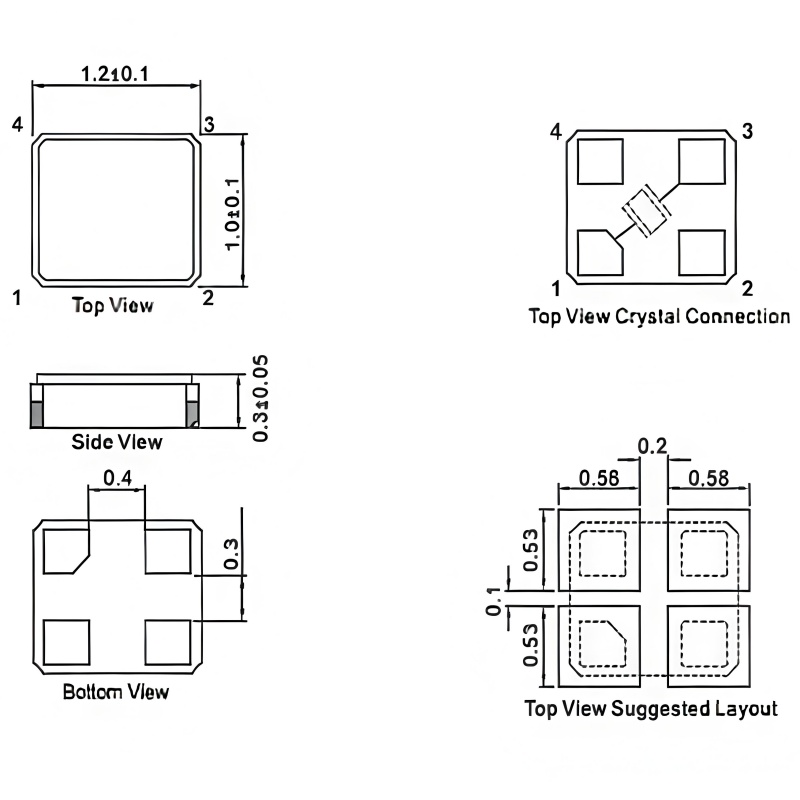

   Dimension
