10.7 MHz Ceramic Band-Pass Filter

Frequency: 10.7MHz
Operating Temperature Range (℃): -20~+80
3dB Bandwidth(kHz): 500±50
Insertion Loss (dB) max: 2.0±2.0 (at minimum loss point)

10.7MHz Ceramic Band-Pass Filter | 500kHz Bandwidth | Low Insertion Loss ≤2.0dB

Product Overview

This 10.7MHz ceramic band-pass filter is precision-engineered for high-selectivity frequency filtering applications. With a 3dB bandwidth of 500±50kHz, ultra-low insertion loss of just 2.0dB (max), and a wide operating temperature range from -20°C to +80°C, it delivers consistent, reliable performance in demanding RF and communication circuits.

Ideal for IF (intermediate frequency) filteringFM receiversradio communication systems, and precision measurement equipment.


Key Features

  • Center Frequency: 10.700MHz ± 0.040MHz

  • 3dB Bandwidth: 500kHz ± 50kHz – precise signal filtering

  • Low Insertion Loss: ≤2.0dB at minimum loss point – preserves signal strength

  • Sharp Attenuation: 20dB bandwidth ≤950kHz; spurious attenuation ≥20dB (5MHz–15MHz)

  • Stable Temperature Characteristics: ±0.5% frequency deviation from -20°C to +80°C

  • High Input/Output Impedance: 470Ω – easy integration into IF stages

  • Wide Operating Range: -20°C to +80°C | Storage: -40°C to +85°C


Rating

Items

Content

Withstanding Voltage (V)

50 (DC1min)

Insulation Resistance Ri,MΩ)min.

100 10V1min

Operating Temperature Range ()

-20+80

Storage Temperature Range ()

-40+85

Electrical Specifications

Items

Content

Center Frequency  fn  (MHz)

10.700±0.040

3dB Bandwidth(kHz)

500±50

20dB Bandwidth(kHz) max

950

Insertion Loss (dB) max

2.0±2.0  (at minimum loss point)

Ripple (dB) max

3.0  (within 3dB Bandwidth)

Spurious Attenuation (dB) min

20  (5MHz-15MHz)

Input/Output Impedance(Ω)

470

Temp. Characteristic

±0.5% (–20 to 80 )

Applications

  • FM IF band-pass filtering

  • 10.7MHz ceramic filter for radio receivers

  • Wireless communication equipment

  • Intermediate frequency (IF) stages

  • Precision frequency selection modules

  • Portable and automotive electronics

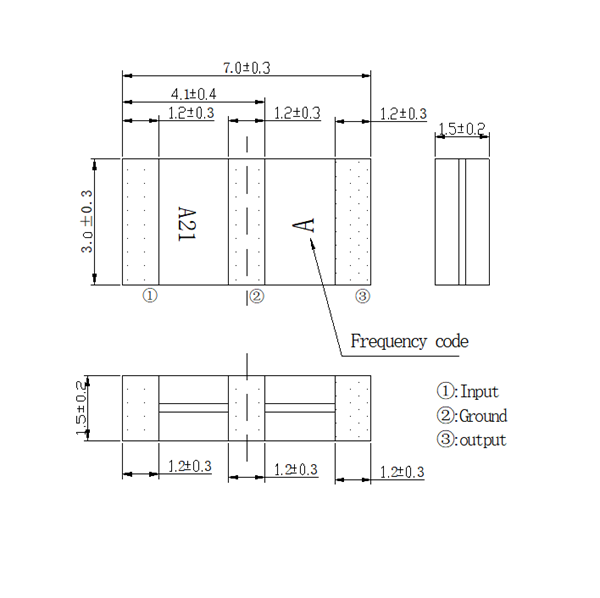

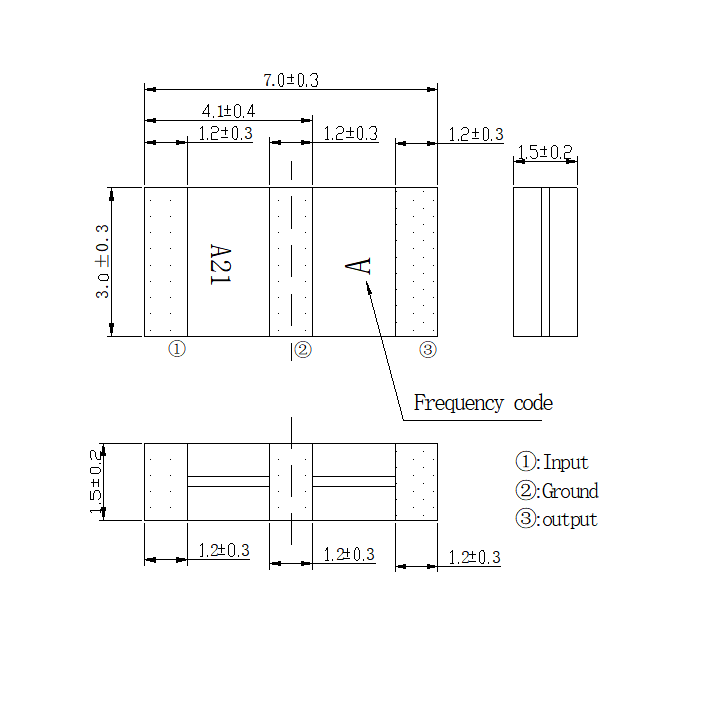

Dimension

10.7 MHz ceramic band-pass filter.png

SMD 3.45*3.1 10.7MHz Ceramic Filter
