10.7MHz Best Ceramic Filter

Frequency: 10.7MHz
Insertion Loss (dB) max: 3.0±2.0 (at minimum loss point)
3dB Bandwidth(kHz): fn±200
Temp. Characteristic: ±0.5% (–20℃ to 80℃ )

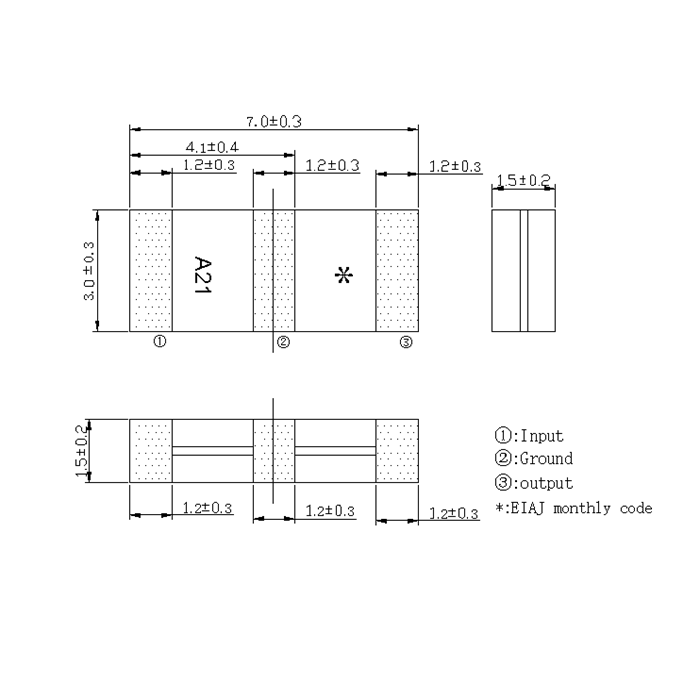

Discover the best ceramic filter – SMD7.0×3.0, 10.7MHz frequency, with max insertion loss of 3.0±2.0dB, 3dB bandwidth of ±200kHz, and stable temp. characteristic (±0.5% from –20℃ to 80℃). Ideal for high-performance RF applications!

Rating

Items	Content
Withstanding Voltage (V)	50 (DC，1min)
Insulation Resistance Ri,（MΩ）min.	100 （10V，1min）
Operating Temperature Range (℃)	-20～+80
Storage Temperature Range (℃)	-40～+85

Electrical Specifications

Items	Content
Center Frequency fn (MHz)	10.700±0.030
3dB Bandwidth(kHz)	fn±200
20dB Bandwidth(kHz) max	950
Insertion Loss (dB) max	3.0±2.0 (at minimum loss point)
Ripple (dB) max	3.0 (within 3dB Bandwidth)
Spurious Attenuation (dB) min	20 (5MHz-15MHz)
Input/Output Impedance(Ω)	470
Temp. Characteristic	±0.5% (–20℃ to 80℃ )
