Min.

Type

Max.

Power consumption

Power Supply

3.3

V

Vcc±5%

Current consumption

≦60

mA

RL=50Ω to VDD-2V

Output

Nominal Frequency

312.5

MHz

Oscillator Mode

Fundamental

Waveform

LVPECL

—--

High-Level output voltage

VDD-1.1

Low-Level output voltage

VDD-1.5

Start-up time

10

ms

t= 0 at 90% VCC

Rise time

0.4

ns

Between 20% and 80% of (VOH-VOL)

Fall time

0.4

ns

Frequency Stability

-20

+20

ppm

Includes inital frequency tolerance, temperature variation, supply voltage change and years aging (±25℃)

RMS Phase jitter

35 fs

intergated from 12kHz~20MHz @312.5MHz 3.3V

Symmetry

45

50

%

Differential swing

0.8

2.0

V

Tri-state

Output enable

70VDD

%

Output will be enable if OE is logic 1or open, output will be disable of OE is logic 0

Output disable

30VDD

%

Ambient Temperature

Operating Temperature Range

-40

105

℃

Storage Temperature Range

-55

125

℃

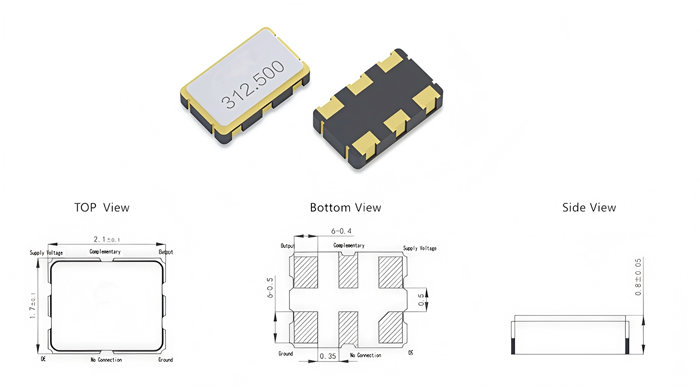

1

CE or NC

2

NC

3

GND

4

OUT

5

OUTN

6

VDD
