80MHz OCXO - Ultra-Low Phase Noise -173dBc/Hz - ±0.3ppm

The XTALOCXO-1414 is a premium Oven Controlled Crystal Oscillator (OCXO) designed for applications where timing precision and signal purity are mission-critical. Operating at a nominal frequency of 80MHz, it delivers an industry-leading ultra-low phase noise of -173 dBc/@100kHz at 100kHz offset, ensuring exceptional performance in RF and microwave systems.

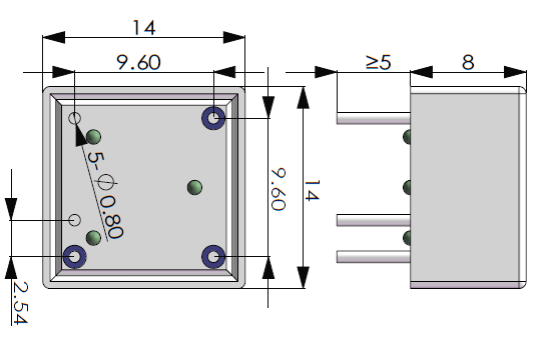

This compact 14x14mm OCXO combines high frequency stability (±0.3 ppm) with an optimized power-efficient design (0.8W steady-state), making it a reliable reference clock for demanding environments!

Here is a concise summary of the XTALOCXO-1414 features and applications:

Key Features

High Stability: ±0.3 ppm over a wide range (-55°C to +85°C).
Ultra-Low Phase Noise: Up to -173 dBc/Hz (at 100 kHz offset).
Power Efficient: 2.5W warm-up / 0.8W steady-state.
Precision Tuning: EFC voltage control (0-5V) for ±0.5 ppm adjustment.
Rugged Desmatchign: Compact, tin-sealed package for high-reliability applications.

Typical Applications

Telecommunications: Reference clock for base stations.
Aerospace & Defense: Radar and navigation systems.
Test & Measurement: High-precision instruments (signal generators, analyzers).
Timing Systems: GPS-disciplined oscillators and clock synchronization.
Reference clock for Base Stations
GPS-disciplined oscillator (GPSDO) components
Perfect for 5G Microcells and Small Cells requiring precision timing synchronization.

Specification

Item	Parameter	Value			Unit	Test Condition
		Min.	Type	Max.
Connection	Power Supply	4.75	5	5.25	V
	Output Load		50		Ω
	Harmonic Suppression			-30	dBc
	Spurious Suppression			-80	dBc
	Start-up Time	-		125	ms
Output	Nominal Frequency	80			MHz
	Waveform	Sine wave			—--
	Output power	7			dBm	Load 50Ω
	Control Slope		Positive		-
	Linearity			10	%
Characteristics	Frequency Accuracy	-0.3		0.3	ppm
	Ambient	-0.3		0.3	ppm	-40～+95℃, fref=(fmax+fmin)/2
	Ambient	-0.3		0.3	ppm	-40～+95℃, fref=(fmax+fmin)/2
	Aging	-0.2		0.2	ppm
Phase Noise	@100Hz		-130		dBc/Hz	Load 50Ω
	@1KHz		-160		dBc/Hz
	@10KHz		-170		dBc/Hz
	@100KHz		-173		dBc/Hz
Power	Current			2.5	W	@Turn on
Power	Current			0.8	W	@Stable
Frequency changed range		-0.5		0.5	ppm
Controlled voltage range		0	-	5	VDC
Input Impedance		10			KΩ
Operable Temp. Range		-40		95	℃
Storage Temp. Range		-55		105	℃
Output load		45		55	Ω
