125MHz Ultra-Low Phase Noise OCXO

Extreme Spectral Purity | -183dBc/1MHz  | +17dBm High-Power Sine Output

Product Overview

The [XTALOCXO-125MHz series] is a 125MHz Oven Controlled Crystal Oscillator (OCXO) engineered for applications where phase noise is the critical bottleneck. It achieves an industry-leading noise  of -183dBc@1MHz and a high-power +17dBm sine wave output. With a daily aging rate of just ±2ppb and a fast 3-minute warm-up time, it provides the ultimate reference for high-speed data converters, radar, and advanced communication systems.

Key Features：

• Extreme Noise Floor: Achieves -183 dBc/Hz @ 1MHz, ensuring maximum SNR in ADC/DAC sampling.

• High Power Drive: +17 dBm sine wave output can directly drive mixers and samplers without additional gain stages.

• Rapid Warm-up: Reaches stability within 3 minutes, ideal for rapid-deployment systems.

• Outstanding Long-term Stability: Daily aging of ±2.0 ppb and ±200 ppb for the first year.

• G-Sensitivity Optimization: Robust design with 1.0 ppb/g sensitivity across all axes.

• Precision Tuning: Voltage control (VC) for frequency adjustment with ±200 ppb initial accuracy.

Applications：

• High-Speed Data Converters: Low-jitter clock source for GSPS ADC/DAC sampling.

• Advanced Radar Systems: Enhances target detection and resolution through extreme spectral purity.

• Satellite Communications: High-stability reference for X-band and Ka-band converters.

• Test & Measurement: Laboratory-grade reference for frequency synthesizers.

Specification：

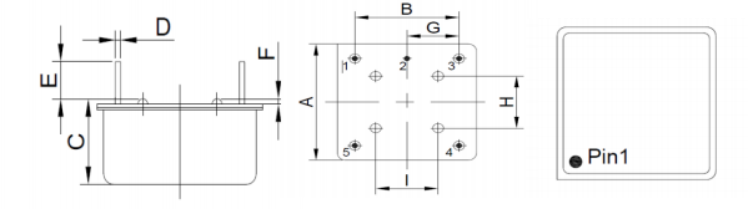

Dimension :mm

Pin function:
