0.28PPM@-40~85℃ 40MHz 7050 TCXO Oscillator

Frequency: 40MHz
Work Temperature: -40~85℃
Reference Temperature Initial Accuracy: ±1ppm
Frequency Temperature Stability: ±0.28ppm

This is a high-precision Temperature Compensated Crystal Oscillator (TCXO) in a compact 7.0mm x 5.0mm surface-mount package. It generates a stable 40MHz frequency signal and is designed for applications demanding excellent frequency stability across a wide temperature range.

Key Features:

Frequency: 40 MHz
Frequency Stability: ±0.28 ppm over the industrial temperature range of -40°C to +85°C.

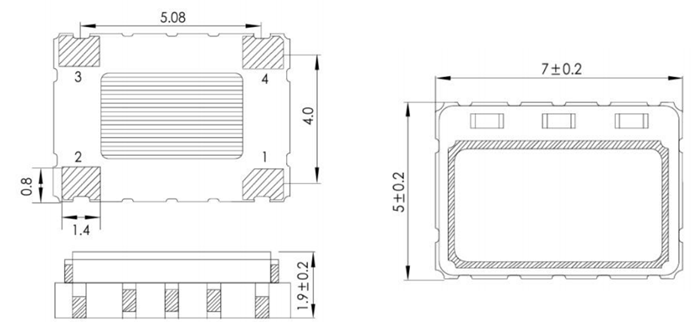

Package: 7050 (7.0mm x 5.0mm)
Technology: Temperature Compensated (TCXO) for superior performance vs. standard oscillators.

Primary Applications:

5G & LTE Cellular Infrastructure (small cells, base stations)
Precision Timing & Synchronization (IEEE 1588 PTP, SyncE)
Networking Equipment (routers, switches, gateways)
Industrial & Automotive Electronics
Global Navigation Satellite Systems (GNSS) receivers

Specification:

No.	Item	Term	Data
No.	Item	Term	Min	Typ	Max	Unit
1	Frequency		-	10	-	MHz
2	Work Temperature		-40	~	85	℃
3	Storage Temperature		-55	~	105	℃
4	Reference Temperature Initial Accuracy	@25℃	-1	~	1	ppm
5	Frequency Temperature Stability	Rfere @25℃ Frequency	-0.28	~	0.28	ppm
6	Frequency and Voltage Tolerance	VCC±5%	-0.1	~	1	ppm
7	Power Supply Voltage		3.14	3.3	3.46	V
8	Output		CMOS
9	Load		15pF
10	Output Level”1”		2.97	-	-	V
11	Output Level”0”		-	-	0.33	V
12	Duty Cycle		45	50	55	%
13	Phase Noise	@1kHz	-	-140	-	dBc/Hz
