SMD 5032 TCXO 50MHz 0.2ppm

Freq: 50MHz
Stability: ±0.2 ppm
Output: LVCMOS
Voltage: 3.3V

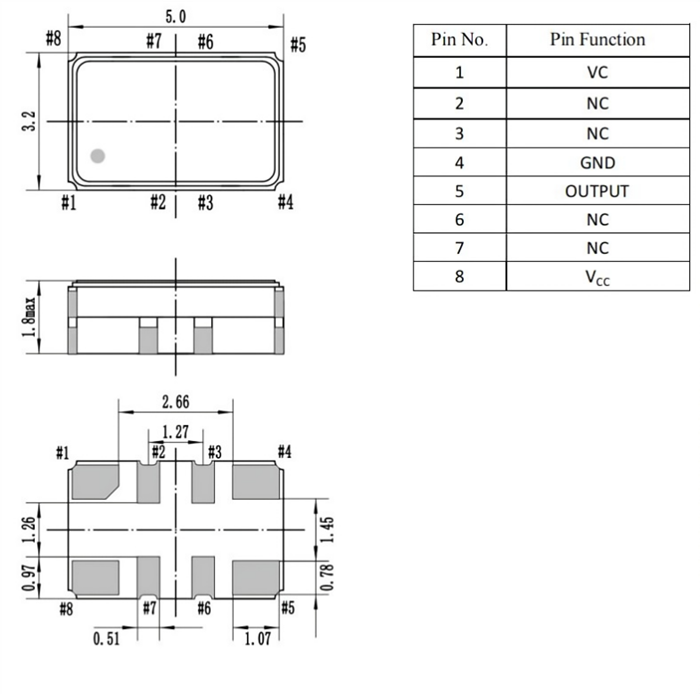

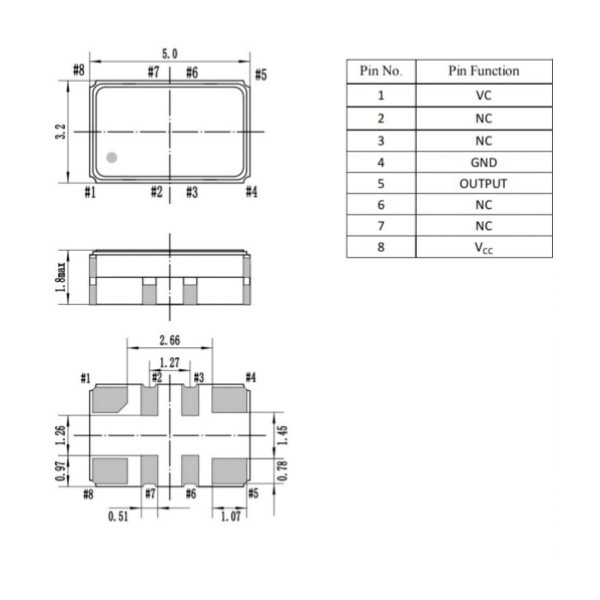

Size: 5.0x3.2 mm

High-precision 50MHz TCXO featuring ±0.2ppm frequency stability in an SMD5032 package, ideal for critical timing and communication systems.

Key Features

Ultra-High Stability: Exceptional ±0.2ppm frequency stability for precision timing.

Industrial Temp Range: Reliable performance across -40°C to +85°C for harsh environments.

Compact Footprint: Standard SMD5032 package, ideal for space-constrained PCB designs.

Optimized Power: 3.3V supply with LVCMOS output for efficient power management.

Superior Phase Noise: Ultra-low phase noise (-140 dBc/Hz @10kHz) for clean signal integrity.

Wireless Comms: 5G/4G Microcells, small cells, and RF transceivers.

Navigation & GNSS: High-precision Beidou/GPS positioning and timing terminals.

Test & Measurement: Frequency counters, spectrum analyzers, and lab instruments.

Network Infrastructure: High-speed switches, routers, and data center synchronization.

Smart Industry: Industrial automation, IoT gateways, and remote telemetry units.

Parameter			Min.	Typ.	Max	Unit	Condition	Note
Frequency Stability
Frequency			50			MHz
Initial Frequency Accuracy			-1.0		+1.0	PPM	Refer. temperature:25±2℃
Supply Variation			-0.2		+0.2	PPM	Vcc±5%
Load Variation			-0.2		+0.2	PPM	CL±5pF
Aging		First year	-1.0		+1.0	PPM	Normal Temperature
Temperature Stability			-0.2		+0.2	PPM	-40℃~+85℃
Supply Voltage/Current
Voltage Supply			3.135	3.3	3.465	V
Operating Current					20	mA
Output Characteristics
LVCMOS	Load			15		pF
	V o H		2.8			V
	V o L				0.4	V
	Duty Cycle		45		55	%
	Rise/Fall time				5	ns
Phase Noise & RMS Jitter
Phase Noise					-105	dBc/Hz	@100Hz
					-130		@1KHz
					-140		@10KHz
Environmental,Mechanical Conditions
Operating temperature range			-40℃~+85℃
Storage temperature range			-55℃~+105℃
