32MHz Crystal Oscillator SMD 1409 (14.3x9.1mm) 5V CMOS, Low Phase Noise & 0.3ps Low Jitter

High-performance 32MHz active Crystal Oscillator in SMD 1409 package (14.3x9.1mm). Features ultra-low phase jitter (0.3ps max) and low phase noise (-130 dBc/Hz @1kHz). Supports wide voltage 1.6V-5.5V, CMOS output, and industrial temperature range (-40°C to +85°C). Ideal for RF, high-speed communication, and precision timing applications.

Product Features

·Standard Frequency: 32.000000 MHz.

·Large SMD Package: 1409 size (14.3 X 9.14 X 4.9 mm) for enhanced stability and heat dissipation.

·Ultra-Low Jitter: RMS phase jitter as low as 0.3 psec max (12kHz to 20MHz).

·Superior Phase Noise: -130 dBc/Hz typical at 1kHz offset for clean signal output.

·Wide Voltage Range: Operates from 1.6V to 5.5V (optimized for 5.0V systems).

·Industrial Reliability: Wide operating temperature range from -40°C to +85°C.

·Output Control: Built-in Enable/Disable (OE) function on Pin 1.

·High Stability: +20ppm frequency stability at 25° C with low aging rate (3ppm/year).

Applications

·RF Communications: Ideal for radio frequency reference clocks and wireless base stations.

·High-Speed Networking: Suitable for 10G/40G Ethernet, fiber channels, and SONET/SDH.

·Industrial Automation: Precision timing for PLC, industrial controllers, and robotics.

·Test & Measurement: Used in high-end oscilloscopes, signal generators, and laboratory instruments.

·Data Conversion: Reference clock for high-performance ADCs/DACs in professional audio or imaging.

Specifications

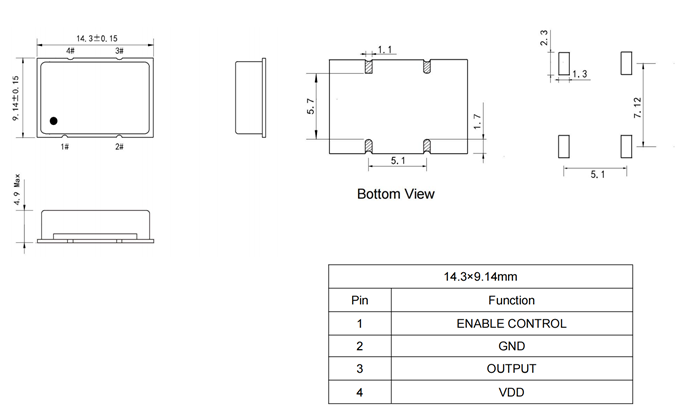

Dimension
