This 100MHz VCXO (Voltage-Controlled Crystal Oscillator) features ultra-low phase noise and a compact SMD 14×9.0mm footprint. Ideal for high-precision timing applications, it delivers stable square wave output with excellent frequency control. RoHS compliant for industrial/telecom use.
This 100MHz VCXO (Voltage-Controlled Crystal Oscillator) features ultra-low phase noise and a compact SMD 14×9.0mm footprint. Ideal for high-precision timing applications, it delivers stable square wave output with excellent frequency control. RoHS compliant for industrial/telecom use.
Main parameters
Output Characteristics | Frequency | 100.00MHz |
Output | Square Wave | |
Load | 15pF | |
High/Low Level | “1” Level≥2.4V “0”Level≤0.4V | |
Rise/Fall Time | ≤6ns | |
Duty Cycle | 50%±5% | |
Frequency stability | Frequency accuracy | ≤±10ppm @25℃±2℃ , Voltage Control 1.65V |
Frequency Temperature Accuracy | ≤±20ppm @-40℃~+95℃ | |
RMSPhase Jitter （12kHz~20MHz） | ≤18fs | |
Phase noise @25℃ | @10Hz | ≤-86dBc/Hz |
@100Hz | ≤-116dBc/Hz | |
@1KHz | ≤-140dBc/Hz | |
@10KHz | ≤-165dBc/Hz | |
@100KHz | ≤-170dBc/Hz | |
@1MHz | ≤-175dBc/Hz | |
@10MHz | ≤-176dBc/Hz | |
Voltage control characteristics | Regulating Voltage | 1.65V±1.65V |
Adjustment range | ≥±25ppm | |
Slope
| Positive slope | |
Input insistance | ≥100KΩ | |
Supply voltage/current@25℃ | Working voltage | 3.3V±5% |
Current | ≤30mA | |
Environmental mechanical conditions | Working temperature range | -40℃~+95℃ |
Storage temperature range | -40℃~+95℃ |

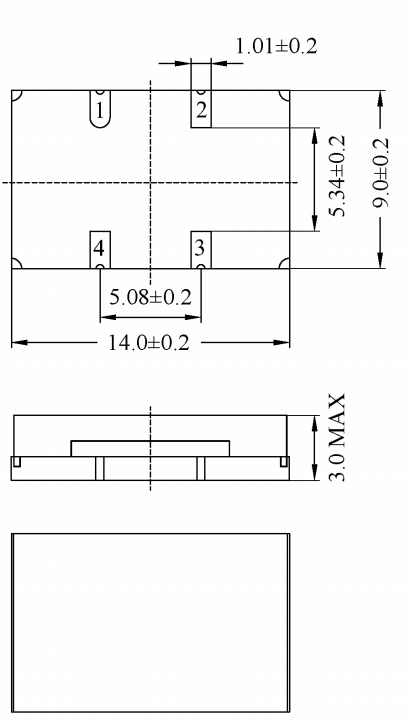

Pin function:
| Pin Number | Function |
| #1 | Voltage controlled |
| #2 | Ground |
| #3 | Frequency output |
| #4 | Voltage input |
