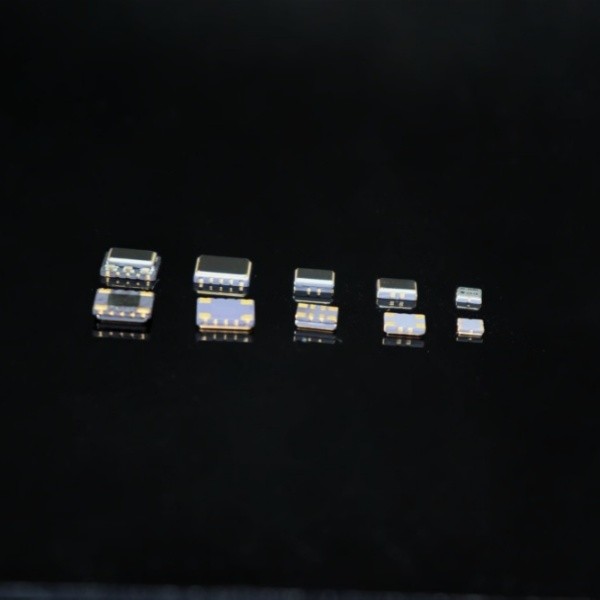

TCXO 100MHz SMD 7.0*5.0mm

Introducing our standard TCXO 100 MHz, featuring a square wave output. This TCXO 100 MHz oscillator offers exceptional frequency stability of 0.5 ppm at 25°C and impressive phase noise performance of -130 dBc at 1 kHz. Its compact dimensions of 7.0 x 5.0 mm make it ideal for a variety of applications. Whether you need precise timing for telecommunications, networking, or other electronic devices, our TCXO 100 MHz is the perfect solution.

Specification:

Product Features	Specifications	Technical Specifications		Remarks
Output characteristics	Nominal Frequency	100.00MHz
	Output Waveform	Square wave		Load 15pF
	Low Level	<0.4V
	High Level	>2.4V
	Rise and Fall Time	<10ns
	Duty Cycle	45%~55%
Frequency stability	Temperature-frequency characteristics	≤±0.5ppm		-40～+85℃,TA = 25℃。
	Voltage-frequency characteristics	≤±0.1ppm		3.3V±5%
	Load-frequency characteristics	≤±0.1ppm		15pF±5%
	Aging	≤±20ppb/day ≤±1ppm/Year
	Frequency accuracy	≤±1ppm		Factory calibration value，+25℃。
OE	Input high level	>0.7VDD
OE	Input low level	<0.3VDD
Power supply voltage	Current Operating Voltage	<25mA		@25℃ , 3.3V，Load 15pF
Power supply voltage	Current Operating Voltage	+3.3VDC		Vcc±5%
Phase noise		type	max
	1KHz	-130	-125	dBc/Hz
Work environment	Operating temperature	-40℃~85℃	Work environment
Work environment	Storage temperature	-55℃~105℃
