100MHz Crystal Filter UM-1

Frequency: 100MHz
3dB passband width(kHz): 4.0～7.0
28dB Stopband width(kHz): ≤±60
Insertion loss（dB）: ≤3.0

A compact, industrial-grade crystal filter centered at 100MHz. It features a sharp 3dB bandwidth (4-7kHz), low insertion loss (≤3dB), and excellent stopband rejection. Designed for stable performance from -40°C to +70°C in a UM-1 package. Ideal for precise frequency control in demanding applications.

Specification

Product Name:	Specifications	Product Model	XTALCF-100M-132-B7T
No.	Item	Data
1	Center frequency（MHz）	100.000(Third harmonic）
2	3dB passband width(kHz)	4.0～7.0
3	28dB Stopband width(kHz)	≤±60
4	Insertion loss（dB）	≤3.0
5	Intraband fluctuations（dB）	≤1.0
6	Parasitic inhibition（dB）	＞10（±10kHz～±100kHz）
7	Working temperature(℃)	-40～+70

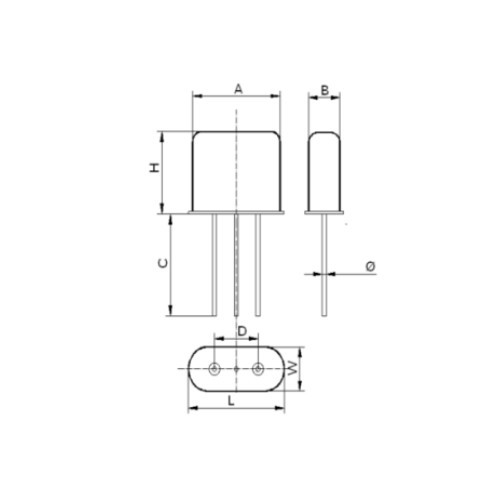

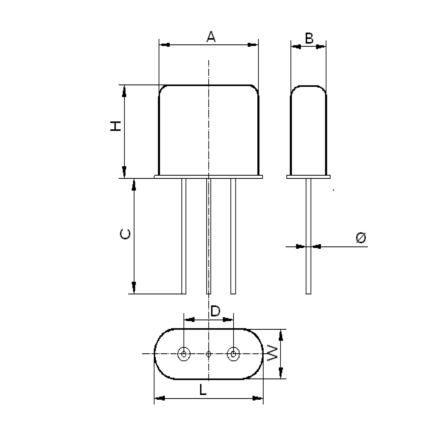

8	Dimensions（mm）	UM-1
9	Input&Output	Input& Output400nH//5.0PF
10	Level	Industry
