100MHz 5V 25*25MM Low Phase Noise OCXO

Designed for ultimate performance, this 100MHz low phase noise OCXO features an ultra-low noise floor of -180dBc/Hz, making it the ideal clock source for high-end audio and precision instruments.

Product Features

Ultra-Low Phase Noise: Achieves a noise floor of -180dBc/Hz @100kHz for an incredibly clean signal.

Superior Stability: High frequency stability of ±0.02 ppm across the entire operating temperature range.

Low Harmonic Output: Sine wave output effectively minimizes harmonics and spurious emissions.

Industrial Reliability: Designed to operate reliably from -40°C to +85°C for harsh environments.

Typical Applications

High-End Audio (Hi-Fi): Ideal as a premium reference clock for high-fidelity DACs and digital transports.

Telecommunications: Local oscillator source for 5G base stations, satellite links, and RF systems.

Precision Instruments: Reference standard for spectrum analyzers, frequency counters, and signal generators.

Radar Systems: Low-noise local oscillator to improve target detection and signal processing accuracy.

Frequency Stability

Supply Voltage/Current

Output Characteristics

Phase Noise

Voltage Control Characteristics

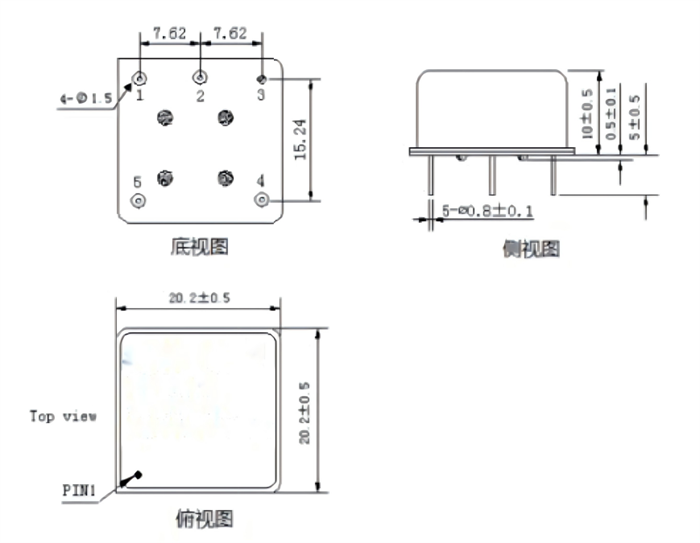

Dimension
