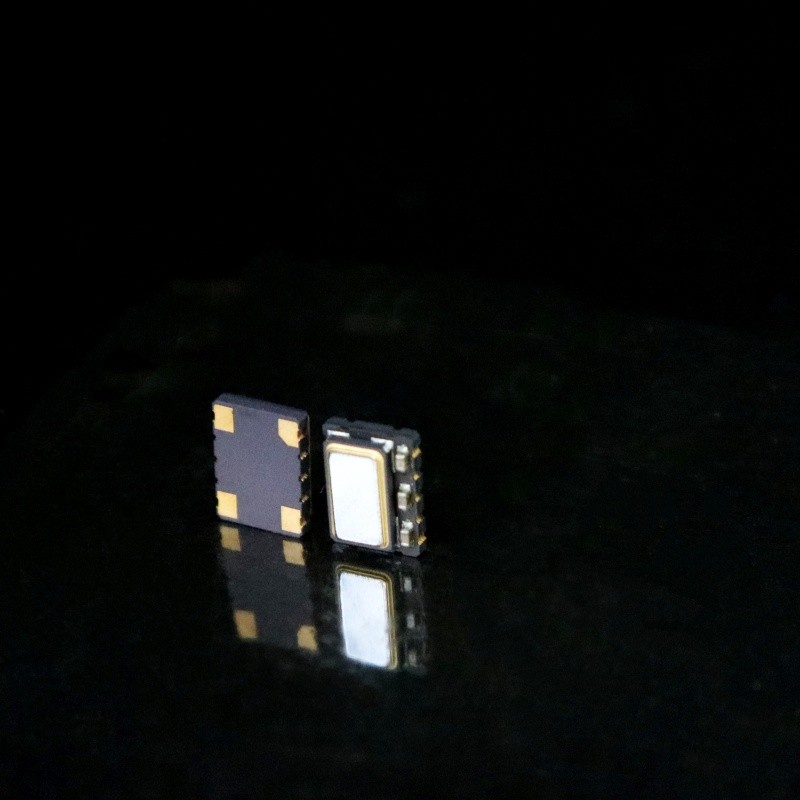

TCXO 100MHz SMD 7.0*5.0mm

Introducing our standard TCXO 100 MHz, featuring a square wave output. This TCXO 100 MHz oscillator offers exceptional frequency stability of 0.5 ppm at 25°C and impressive phase noise performance of -130 dBc at 1 kHz. Its compact dimensions of 7.0 x 5.0 mm make it ideal for a variety of applications. Whether you need precise timing for telecommunications, networking, or other electronic devices, our TCXO 100 MHz is the perfect solution.

100MHz Square Wave TCXO – High-Stability SMD 7050 Frequency Reference

Product Overview：

Introducing our high-performance 100MHz TCXO (Temperature Compensated Crystal Oscillator) featuring a robust Square Wave (CMOS) output. Designed for precision timing, this oscillator delivers exceptional frequency stability of ±0.5 ppm across an industrial temperature range and superior phase noise performance of -130 dBc/Hz at 1 kHz offset. Its industry-standard 7.0 x 5.0 mm SMD footprint makes it the perfect solution for high-density telecommunications, networking, and precision electronic instrumentation.

Key Features ：

High Frequency: Standard 100.00MHz output for high-speed systems.
Superior Stability: Tight ±0.5 ppm stability from -40°C to +85°C.
Clean Signal: Excellent phase noise performance (-130 dBc/Hz @ 1kHz).
CMOS Output: Reliable square wave output with 15pF load compatibility.
Low Power Consumption: Efficient operation with current draw < 25mA.
Compact Design: Industry-standard 7x5mm surface-mount package.
Enable/Disable Function: Integrated OE (Output Enable) for system power management.

Ideal Applications：

Telecommunications: Base stations, small cells, and optical transport networks.
Networking: High-speed switches, routers, and gateways.
Industrial Electronics: Precision timing for automation and control systems.
Test & Measurement: Stable clock source for frequency counters and synthesizers.

Main technical:

Parameter	Specification	Unit	Notes
Nominal Frequency	100	MHz
Output Waveform	Square Wave (CMOS)	---	15pF Load
Output Level (Low)	< 0.4	V
Output Level (High)	> 2.4	V
Rise / Fall Time	< 10	ns	10% to 90% VDD
Duty Cycle	45% to 55%	%
Frequency Stability	±0.5 (max.)	ppm	-40°C to +85°C
Aging (Daily)	±20	ppb	After 30 days
Aging (Yearly)	±1.0	ppm	First Year
Initial Accuracy	±1.0	ppm	@ 25°C Factory Cal.
Supply Voltage	+3.3 (±5%)	VDC
Supply Current	< 25	mA	@ 25°C
Phase Noise @ 1kHz	-130 (typ.)	dBc/Hz	-125 max.
Package Size	7.0 x 5.0	mm	SMD 7050
