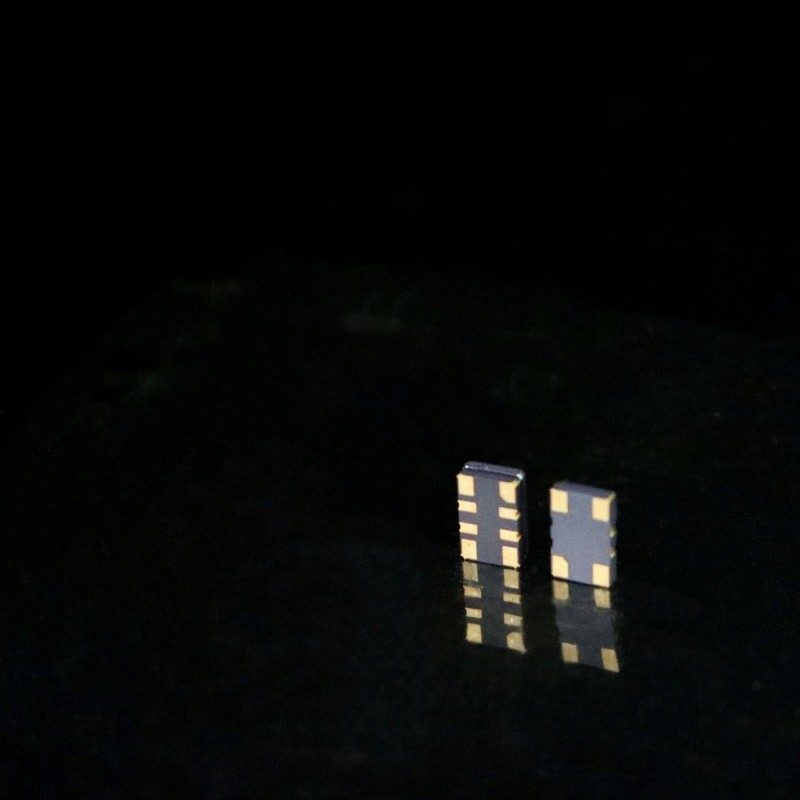

TCXO 50MHz SMD5032

Frequency: 50MHz
Initial Frequency Accuracy: ±1ppm
Temperature Stability: -40℃~+85℃
Supply Voltage: 3.3V
Dimension: 5.0*3.2mm

50MHz High-Stability TCXO (±0.2 ppm)

Precision Temperature Compensated Oscillator | 5.0 x 3.2mm Package | 3.3V LVCMOS

Product Overview

The [Model Number] is a high-precision Temperature Compensated Crystal Oscillator (TCXO) engineered for applications where frequency drift is not an option. Housed in a standard 5.0 x 3.2 mm (5032) footprint, it delivers an elite temperature stability of ±0.2 ppm across the full industrial range of -40°C to +85°C. This 50MHz solution is ideal for high-speed networking and industrial automation systems that require rock-solid timing in changing thermal environments.

Specification:

Parameter			Min	Typ.	Max.	Unit	Condition	Note
Frequency			50			MHz
Initial Frequency Accuracy			-1.0		+1.0	PPM	Reference temperature:25±2℃
Supply Variation			-0.2		+0.2	PPM	Vcc±5%
Load Variation			-0.2		+0.2	PPM	CL±5pF
Aging		First year	-1.0		+1.0	PPM	Normal Temperature
Temperature Stability			-0.2		+0.2	PPM	-40℃~+85℃
Voltage Supply			3.135	3.3	3.465	V
Operating Current					20	mA
LVCMOS	Load			15		pF
	V_oH		2.8			V
	V_oL				0.4	V
	Duty Cycle		45		55	%
	Rise/Fall time				5	ns
Phase Noise					-105	dBc/Hz	@100Hz
					-130		@1KHz
					-140		@10KHz
Operating Temperature Range			-40℃~+85℃
Storage Temperature Range			-55℃~+105℃
