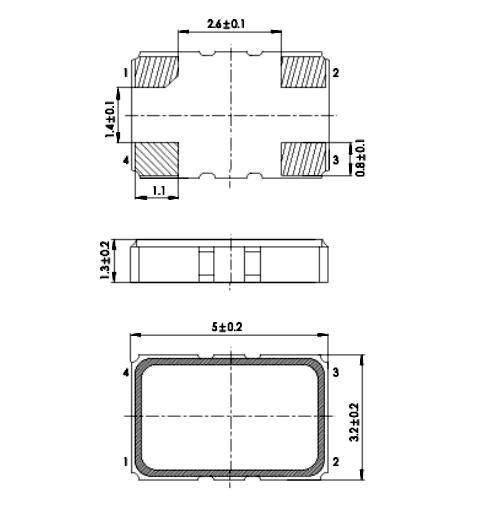

10MHz 3V SMD5032 VCTCXO

Frequency: 10MHz
Voltage: 3V
Waveform: Clipped Sine Wave
Initial Accuracy (Reference Temperature): ±1ppm
Operating Temperature Range: -30~75℃

High-Stability Clipped Sine Wave | 3.0V Operation | Voltage-Controlled Tuning

1.Product Overview

The [XTALVCTCXO-5032-10M series] is a high-reliability Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO) designed for precision timing in battery-powered and wireless communication systems. Operating on a 3.0V supply with a remarkably low 3.0mA current draw, it provides a stable 10MHz clipped sine wave output. The integrated Voltage Control (VC) function allows for precise frequency aging compensation and synchronization, ensuring long-term system accuracy.

2. Key Features

High Precision: ±1.0 ppm initial frequency tolerance at 25°C.

Superior Stability: ±2.0 ppm stability over the full temperature range.

Low Power Consumption: Maximum current of only 1.5 mA.

Industrial Grade: Reliable performance from -40°C to +85°C.

Voltage Control: Integrated tuning range for precise frequency adjustment.

3. Electrical Characteristics

All specifications are typical at 25°C, VDD = 3.0V, unless otherwise optimized.

No.	Parameter	Test Condition	Min	Typ	Max	Unit
1	Nominal Frequency	—	—	13	—	MHz
2	Frequency Tolerance	@ 25℃ ± 2℃	-1	—	1	ppm
3	Temperature Stability	Ref. to 25℃ (-40~+85℃)	-2	—	2	ppm
4	Supply Voltage Stability	VDD ± 5%	-0.2	—	0.2	ppm
5	Load Stability	Load ± 5%	-0.2	—	0.2	ppm
6	Current Consumption	—	—	—	1.5	mA
7	Aging	Per Year	—	±1.0	—	ppm
8	Supply Voltage (VDD)	—	—	3	—	V
9	Output Waveform	Clipped Sine Wave	—	—	—	—
10	Output Load	Resistance // Capacitance	—	10K//10	—	Ω//pF
11	Output Voltage	Peak-to-Peak	0.8	—	—	V
12	Voltage Control Range	Control Voltage (Vc)	0.5	1.5	2.5	V
13	Tuning Range	Positive Slope	±10	—	—	ppm/V
14	Phase Noise	@ 1kHz Offset	—	-130	—	dBc/Hz
15	Operating Temp. Range	—	-40	—	85	℃
16	Storage Temp. Range	—	-40	—	85	℃
