TCXO 10MHz 2016 3.3V Clipped Sine

Frequency: 10MHz
Supply Voltage: 3.3V
Frequency Tolerance: ±1.5ppm
Frequency Stability: ±0.5ppm
Operating Temperature Range: -40~85℃

Precision 10MHz TCXO in 2016 Package | ±0.5ppm Stability, 3.3V, 2mA | XTALONG XTALTCXO-2016

A high-accuracy, low-power 10.000000MHz Temperature Compensated Crystal Oscillator (TCXO) in a compact 2016 SMD package. Features exceptional ±0.5ppm frequency stability across -40°C to +85°C, clipped sine wave output, and ultra-low 2.0mA current consumption.Ideal for demanding communication, industrial, and IoT timing applications.

Specification

	Parameter	Value			Unit	Test Condition
	Parameter	Min.	Type	Max.	Unit	Test Condition
Power consumption	Supply Voltage	3.14	3.3	3.47	V
Power consumption	Current Consumption			2.0	mA
Output	Nominal Frequency	10.000			MHz
	Waveform	Clipped Sine			—--	Note 1
	Output Level	0.8			Vp-p
	Load	10kΩ //10pF
	Duty Cycle	40	50	60	%
	Start-up Time			2.0	ms	To 90% of Vp-p
Frequency Stability	Frequency Tolerance	-1.5		+1.5	ppm	Note 2
	Aging	-1.0		+1.0	ppm	1st year@25±3°C
	Temperature characteristics	-0.5		+0.5	ppm	Note 3
	Power Characteristics	-0.2		+0.2	ppm	Vcc±5%
	Load Characteristics	-0.2		+0.2	ppm	Load ± 10%
Ambient Temperature	Operating Temperature Range	-40		85	℃
Ambient Temperature	Storage Temperature Range	-40		85	℃

Note1 DC-cut capacitor of output is not put in TCXO. Please add DC-cut capacitor (above 1nF) in output line

Note2 Refer to nominal frequency

Note3 Referenced to the midpoint between minimum and maximum frequency value

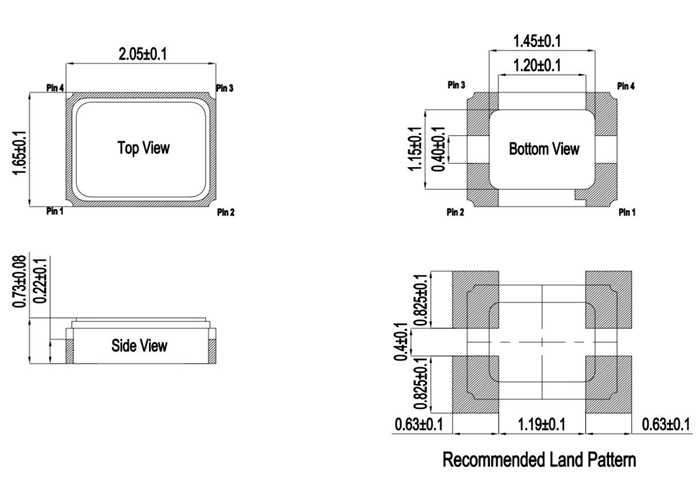

Dimension

tcxo 10mhz product dimension.png

2.0×1.6×0.73mm
Pin	Symbol
1	NC or GND (GND recommended）
2	GND
3	Fout
4	Vcc

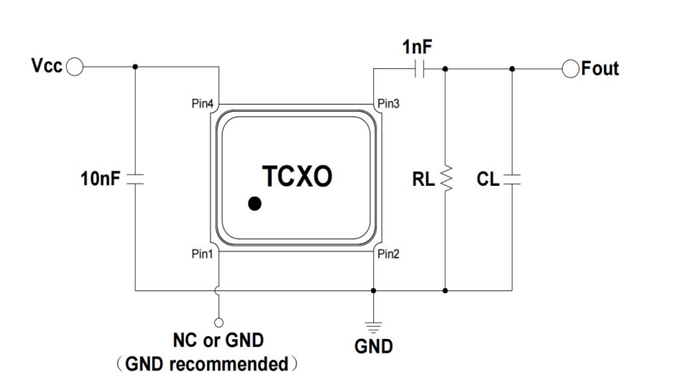

Test Circuit

tcxo 10mhz test circuit.png

Final reminder: The key to successful implementation lies in strictly adhering to the load conditions and peripheral circuit requirements, particularly the addition of an external DC-blocking capacitor and matching the 10 kΩ // 10 pF load.
