37.125MHz Oscillator | SMD 2520 | 1.8V CMOS | Industrial Grade Crystal Oscillator

High-performance 37.125MHz active oscillator in a miniature SMD 2520 package. Optimized for 1.8V low-power applications, it features industrial-grade reliability (-40°C to +85°C) and ±10ppm high precision. With CMOS output and Tri-state support, it is the ideal clocking solution for HD video, IoT, and networking hardware.

Features

Ultra-compact: SMD 2520 (2.5x2.0mm) miniature package.

Low Power: Optimized for 1.8V low voltage operation.

Industrial Grade: Wide temperature range (-40°C to +85°C).

High Precision: ±10ppm frequency tolerance for stable timing.

Smart Control: Built-in Tri-state (Enable/Disable) function.

Fast Response: High-speed CMOS output with 5ns rise/fall time.

Applications

HD Video: Set-top boxes (STB), Smart TVs, and HD cameras.

Networking: Optical modules, routers, and switches.

IoT & Wearables: Smart sensors, trackers, and portable devices.

Industrial: Embedded controllers, PLCs, and factory automation.

Computing: SSD controllers and microprocessor clocking.

Automotive: In-car infotainment and ADAS camera systems.

Specifications

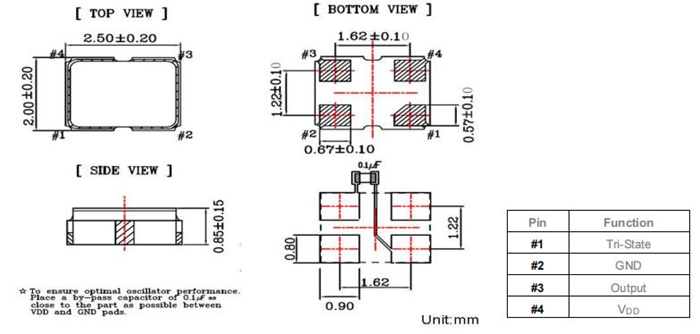

Dimension
