80MHz Active Crystal Oscillator, SMD 7050 Package, 3.3V, ±20ppm

Product Features

High Frequency Stability: 80.000 MHz nominal frequency with high precision of ±20PPM at 25°C.

Industrial Grade Temperature: Wide operating temperature range from -40°C to +85°C, designed for harsh industrial environments.

Low Jitter Performance: Ultra-low period jitter of 40ps Max, ensuring superior signal integrity and reduced system noise.

Standard SMD Packaging: Industry-standard SMD 7050 (7.0 x 5.0 mm) footprint for easy integration.

High Compatibility: 3.3V supply voltage with CMOS output, compatible with most digital circuit designs.

Fast Switching Response: Rapid Rise/Fall time of 2ns Max, delivering clean and sharp square wave signals.

Low Power Consumption: Efficient design with a maximum current consumption of 40mA.

Eco-Friendly & Reliable: RoHS compliant and lead-free, featuring excellent long-term aging characteristics (±3ppm/year).

Applications

Industrial Automation: Widely used in PLCs (Programmable Logic Controllers), frequency inverters, servo drives, and industrial sensors, ensuring stable operation in harsh environments.

Networking & Communications: Ideal for Ethernet switches, routers, optical transceivers, and base station equipment, providing high-precision clock references.

Embedded Systems: Serves as the primary external clock source for FPGAs, ARM processors, and MCUs (Microcontrollers) to support high-speed data processing.

Security & Surveillance: Applied in HD IP cameras, NVR/DVR systems, and video processors to ensure stable video streaming and synchronization.

Professional Audio Equipment: Features low jitter (40ps), making it suitable for professional sound cards, DACs, and high-end audio processing systems for superior sound quality.

Test & Medical Instrumentation: Used in precision electronic measurement tools, oscilloscopes, and medical monitoring devices to ensure accurate data acquisition.

Automotive Electronics: Suitable for infotainment systems, ADAS (Advanced Driver Assistance Systems) controllers, and automotive communication gateways.

Specifications

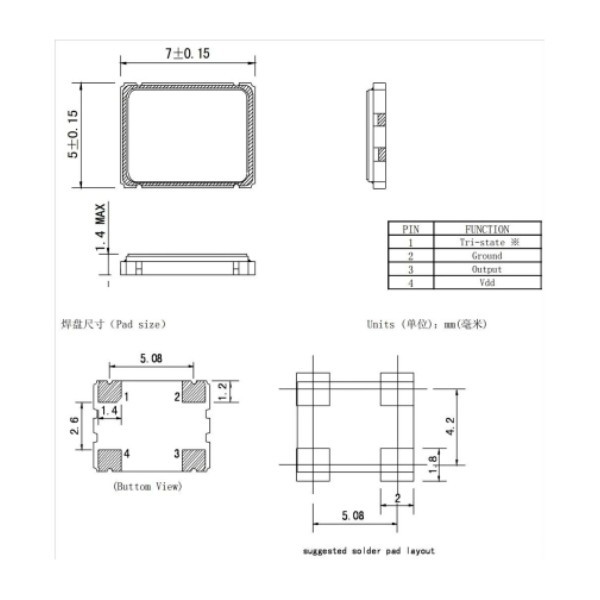

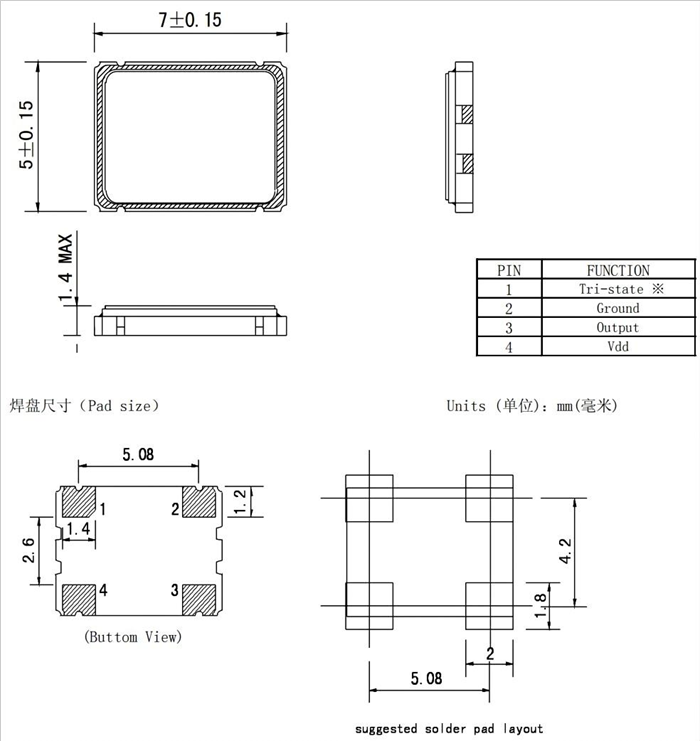

Dimension
