DIP5 10MHz OCXO 14*14mm 5V

High-performance 10MHz OCXO in a compact 14x14mm miniature package.

Overview

This high-performance Miniature Oven Controlled Crystal Oscillator (OCXO) delivers a highly stable 10MHz frequency reference in a compact 14x14mm package. Designed for precision and reliability, it features ultra-low phase noise and a pure sine wave output, making it an ideal choice for space-constrained applications that demand uncompromising signal integrity.

Key Features

Compact Footprint: Miniature 14x14mm size for high-density PCB designs.

Superior Stability: Frequency stability of ±0.5ppm across an industrial temperature range (-40°C to +85°C).

Ultra-Low Phase Noise: Reaches -170 dBc/Hz @ 10kHz, ensuring exceptional spectral purity.

Signal Output: High-quality Sine Wave output (≥ +7dBm) with excellent harmonic suppression.

Frequency Control: Integrated Electronic Frequency Control (EFC) for precise system-level tuning.

Applications

High-precision synchronization for 5G, LTE, and small cell base stations.

Low phase noise local oscillator for radar and electronic warfare systems.

High-stability reference clocks for spectrum analyzers and oscilloscopes.

Reliable frequency reference for satellite communication (SATCOM) ground stations.

Master clock synchronization for high-end digital-to-analog converters (DAC).

Precision timing for smart grid monitoring and power system protection.

Core oscillator for GPS-disciplined frequency references (GPSDO).

Frequency standard for professional-grade broadcast and television equipment.

Specification

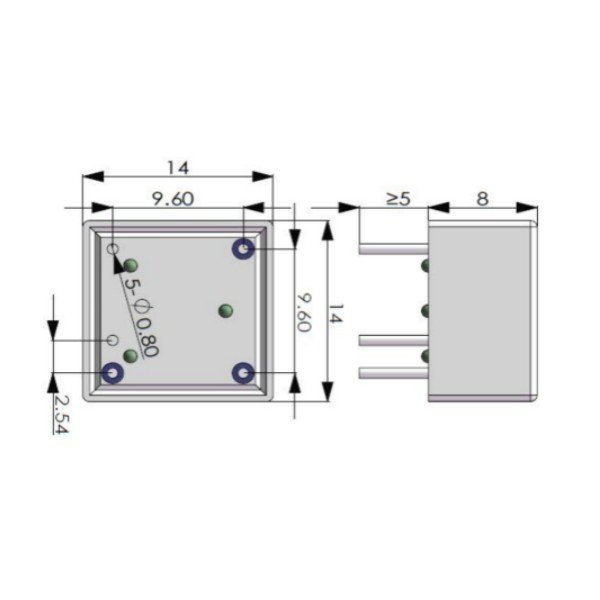

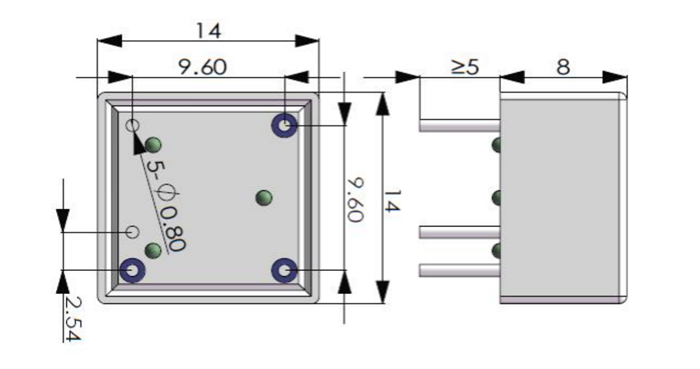

Dimension
