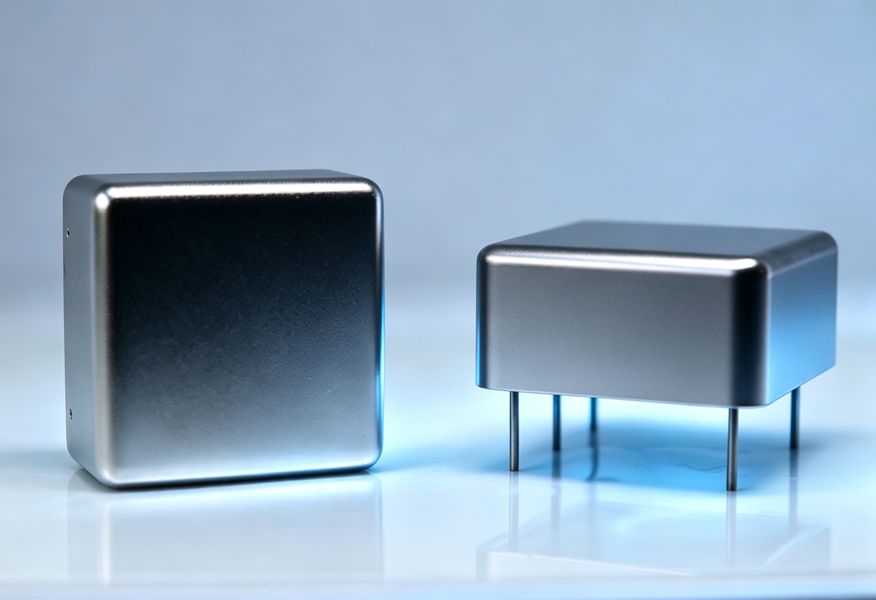

38.4MHz OCXO DIP20*20MM

Nominal Frequency: 38.4000MHz
Operating Voltage: 3.3V
Output Waveform: CMOS
Frequency Accuracy: ±200 ppb (parts per billion, offering extremely high precision)
Package Dimensions: 20mm (L) x 20mm (W) x 12mm (H)
Pin Functions: Includes Supply Voltage (VCC), Electronic Frequency Control (EFC), Reference Voltage (Vref), Ground (GND), and RF Output (RF).

A high-performance 38.4MHz OCXO featuring ppb-level frequency stability, ultra-low phase noise, and industrial-grade reliability for precision timing applications.

Features

Extreme Stability: ppb-level precision and minimal aging for long-term consistent performance.

Excellent Signal Purity: Low phase noise reduces transmission jitter and errors.

Industrial Reliability: Built for harsh environments (-40°C to +85°C) with robust shock and ESD protection.

Specifications

Item	Parameter	Value			Unit	Test Condition
		Min.	Type	Max.
Connection	Power Supply	-	3.3	-	V
Connection	Load		15		pF
Output	Nominal Frequency	38.400			MHz
	Waveform	CMOS			—--
	High Level	2.7			V	Load 15pF
	Low Level			0.3	V
	Rise/Down Time			6	ns
Characteristics		Min	Typ.	Max	Unit
	Frequency Accuracy	-200		+200	ppb
	Ambient	-20		+20	ppb	-40～+85℃, fref=(fmax+fmin)/2
	Aging	-1		+1	ppb	After work 30days

Phase Noise		Min	Typ.	Max	Unit
	@100Hz		-		dBc/Hz	Load 15pF
	@1KHz		-140		dBc/Hz
	@10KHz		-145		dBc/Hz
	@100KHz		-		dBc/Hz
Power	Start Current			3.5	W	@Turn on
Power				1.5	W	@Stable 25℃±3℃
Frequency changed range		-0.3		+0.3	ppm
Controlled voltage range		0	-	3.0	VDC
Input Impedance		100			KΩ
Operable Temp. Range		-40		+85	℃
Storage Temp. Range		-55		+85	℃
Duty cycle		45		55	%

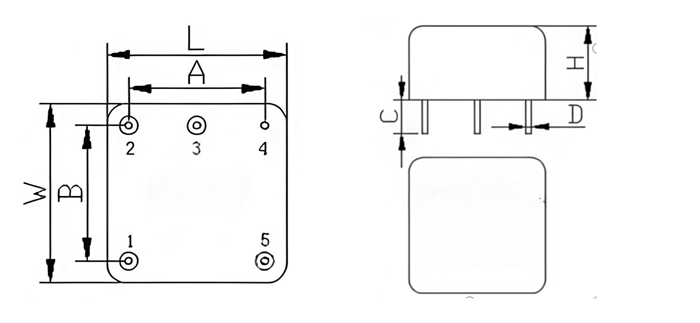

Dimension

38.4MHZ OCXO DIMENSION.png

A：15.2±0.2mm B：15.2±0.2mm

L: 20.0±0.5mm W:20.0±0.5mm H:12.0±0.5
Pin	Symbol	Electrical performance
1	VCC	Power input
2	EFC	Electronic Frequency Control
3	Vref	Voltage reference
4	GND	Ground
5	RF	RF intput
