DIP2525 100MHz OCXO Stability 50ppb

Frequency: 100.000 MHz (Sine wave)
Stability: ±0.05 ppm (–40°C to +85°C)
Phase Noise: Extremely low floor of –180 dBc/Hz (at 100kHz–1MHz offset)
Aging Rate: ±0.1 ppm per year (Ultra-stable)
Frequency Control: Voltage-controlled (EFC), ±1 ppm range
Output Power: +13 dBm (typ.)

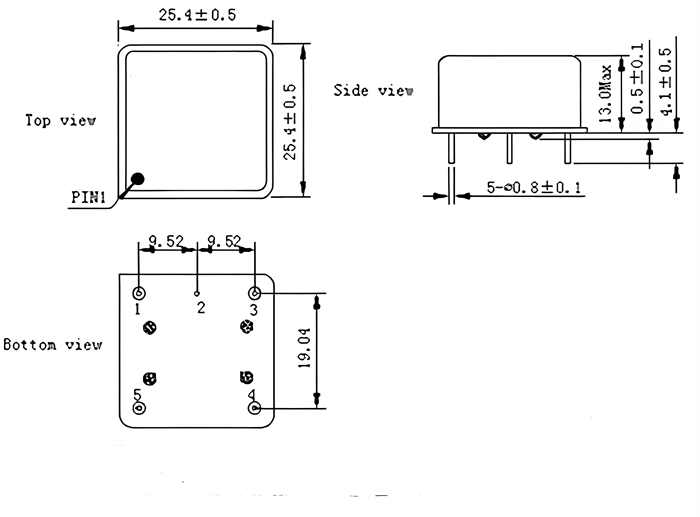

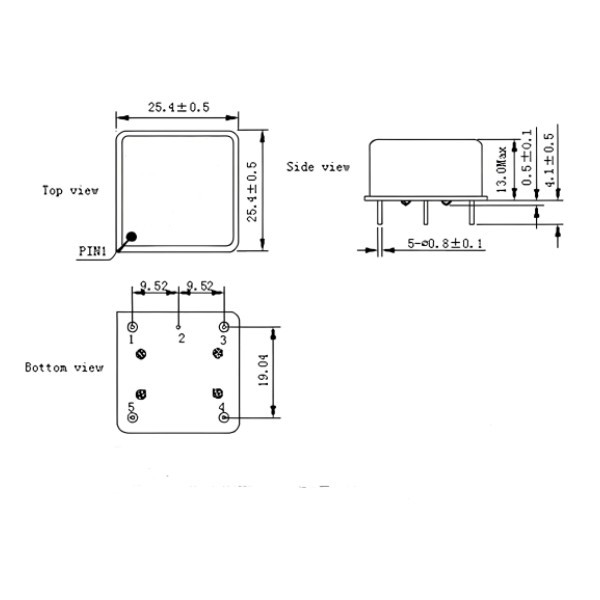

Form Factor: Compact 25.4 x 25.4 mm (1-inch square) footprint
Power Supply: 5 VDC (Standard)

100MHz Ultra-Low Phase Noise OCXO – High-Stability Precision Timing Source

Product Overview

The 100MHz OCXO is a high-performance Oven Controlled Crystal Oscillator engineered for mission-critical synchronization and high-precision communication systems. Delivering an industry-leading phase noise floor of -180dBc/Hz and a short-term stability (Allan Variance) of <5E-11, this oscillator ensures unparalleled signal purity. With its ±0.05 ppm temperature stability and low G-sensitivity (±0.5 ppb/G), it provides reliable performance in the most demanding RF environments.

Key Features

Industry-Leading Phase Noise: Reaches -180 dBc/Hz at 100kHz and 1MHz offsets.
Exceptional Stability: Tight ±0.05 ppm frequency stability over -40°C to +85°C.
Superior Short-Term Stability: Allan deviation of < 5E-11 for precision timing.
Low Aging Rate: Daily aging less than ±1.0 ppb; yearly aging within ±0.1 ppm.
Clean Sine Wave Output: High signal integrity with harmonics at -50 dBc and spurious at -80 dBc.
Robust Environment Resistance: Low G-sensitivity (±0.5 ppb/G) for vibration-heavy applications.
Voltage Control (EFC): 0-5V tuning range with ±1 ppm adjustment for precise calibration.

Applications

Advanced Radar Systems: Ensures maximum target detection range and Doppler resolution.
Satellite Communications (SATCOM): High-purity reference for up/down conversion.
Test & Measurement Equipment: Reference clocks for high-end synthesizers and signal analyzers.
Precision Time Protocol (PTP): High-stability clock for synchronization in 5G and data centers.

Specification

	Parameter		Value			Unit	Test Condition
			Min.	Type	Max.
Power consumption	Power Supply	Work Voltage		5		VDC	Vcc±5%
	Current	Start-up Current			700	mA	@Vcc±5%,25℃
		Operating Current			300	mA	@Vcc±5%,25℃
Output	Nominal Frequency		100.000			MHz
	Waveform		Sine wave			—--
	Output Power		8.0	13.0		dBm	Load: 50Ω
	Harmonic				-50	dBc	Load: 50Ω
	Spurious				-80	dBc	Load: 50Ω
	Load		47.5	50	52.5	Ω	Load ± 5%
Frequency Stability	Initial Accuracy (Factory Calibration)		-0.2		+0.2	ppm	VC=2.0V, 25℃, power on for 30 minutes
	Aging	Daily	-1.0		+1.0	ppb	Tested after 30 days of continuous power-on
		Yearly	-0.1		+0.1	ppm	In the first year, the test was conducted after 30 consecutive days of power-on.
	Temperature characteristics		-0.05		+0.05	ppm	-40～85℃ @25℃
	Power Characteristics		-0.01		+0.01	ppm	Vcc±5%
	Load Characteristics		-0.01		+0.01	ppm	Load ± 5%
	Short Term Frequency Stability			<5E-11			Allan bias, powered on time >1 h
	G_Sensitivity		-0.5		+0.5	ppb/G	Worst Axial
Phase Noise		@1Hz		——-	-----	dBc/Hz	Placed in a sealed box at room temperature, free from EMI/EMC or other interference, and tested after 1 hour of power-on. Test equipment: E5052B.
		@10Hz		-110	-105	dBc/Hz
		@100Hz		-140	-135	dBc/Hz
		@1KHz		-165	-160	dBc/Hz
		@10KHz		-176	-171	dBc/Hz
		@100KHz		-180	-175	dBc/Hz
		@1MHz		-180	-175	dBc/Hz
Frequency Tuning	Frequency Adjustment Method		Voltage Regulation (Voltage Control)			—--
	Voltage-Controlled Voltage Input (VC)		0~5			VDC
	Frequency Adjustment Range		-1		+1	ppm
	Slope		Positive			——-
	Linearity				5	%
	Voltage-Controlled Input Impedance		100			KΩ
Ambient Temperature	Operating Temperature Range		-40		85	℃
Ambient Temperature	Storage Temperature Range		-55		105	℃
