OCXO Oscillator 95MHz Sinewave

Supply Voltage: 5.0V
Temperature Stability: <±1ppb
Operating Temperature Range: -40~85℃
Low Phase Noise: 1KHz: ≤-160dBc/Hz

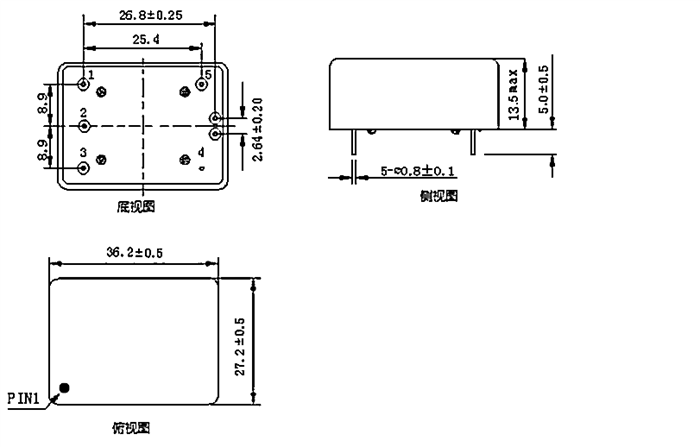

The XTALVCOCXO-3627-95M-5V-VF-SW is a 5.0V OCXO with a package size of 36.2*27.2*13.5mm. It meets the frequency temperature stability requirement of ≤±1ppb within a temperature range of -40~+85℃ and is mainly used in instrument testing and measurement, clock reference, military communications, radar and other fields.

Product Features

Supply Voltage: 5.0V

Temperature Stability: <±1ppb

Operating Temperature Range: -40~85℃

Low Phase Noise: 1KHz: ≤-160dBc/Hz

Applications

Radar

Telecommunication systems

Clock references

Microwave signal sources

Test instrument

Electrical Specification

Specifications	Condition	Min.	Typ.	Max.	Unit
Nominal Frequency			95		MHz
Pulling Range	Positive	±0.5			ppm
Linearity				5	%
Voltage-Controlled Voltage		0	2.5	5.0	V
Frequency Accuracy	Factory Calibration Value，+25℃,VC=2.5V	-0.1		+0.1	ppm
Ambient	-40～+85℃, fref=(fmax+fmin)/2	-1		+1	ppb
Power Supply Frequency Characteristics	5V±5%	-2		+2	ppb
Load Frequency Characteristics	50Ω±5%	-2		+2	ppb
Aging	Daily Yearly	-0.5 -50		+0.5 +50	ppb
Short Term Frequency Stability	10s			5	ppt
Signal Power	Sine wave	5			dBm
Harmonic Suppression				-45	dBc
Spurious Suppression				-80	dBc
Current @Turn on				1000	mA
Current @Stable	@25℃			500	mA
Supply Voltage	±5%		5.0		V
Output Load			50		Ω
Input Impedance		100			KΩ
Power on Characteristics	Frequency deviation 15 minutes after startup relative to 1 hour.	-0.01		0.01	Ppm
Phase Noise	10Hz			-100	dBc/Hz
	100Hz			-130
	1KHz			-160
	10KHz			-165
	100KHz			-170
	1MHz			-170
Operable Temp. Range		-40		85	℃
Storage Temp. Range		-55		105	℃
