80MHz OCXO DIP 1414 Package

1.Frequency: 80.00MHz
2.Stability: ±0.3ppm (Very stable from -40°C to +95°C)
3.Phase Noise: -173dBc/Hz (Extremely clean signal)

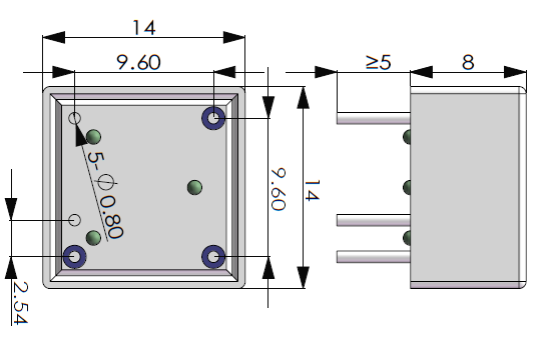

4.Size: 14×14×8mm (Compact and space-saving)
5.Phase Noise: -130 dBc/Hz@100Hz

This is a high-performance 80MHz OCXO featuring ultra-low phase noise (-173dBc/Hz) and exceptional frequency stability across a wide temperature range (-40°C to +95°C) in a compact 14x14mm package.

Specification

Item	Parameter	Min.	Typ.	Max.	Unit	Test Condition
Connection	Power Supply	4.75	5	5.25	V
	Output Load		50		Ω
	Harmonic Suppression			-30	dBc
	Spurious Suppression			-80	dBc
	Start-up Time	-		125	ms
Output	Nominal Frequency	80.00			MHz
	Waveform	Sine wave			—--
	Output power	+7			dBm	Load 50Ω
	Control Slope		Positive		-
	Linearity			10	%
Characteristics	Frequency Accuracy	-0.3		+0.3	ppm
	Ambient	-0.3		+0.3	ppm	-40～+95℃, fref=(fmax+fmin)/2
	Aging	-0.2		+0.2	ppm
Phase Noise	@100Hz		-130		dBc/Hz	Load 50Ω
	@1KHz		-160		dBc/Hz
	@10KHz		-170		dBc/Hz
	@100KHz		-173		dBc/Hz
Power	Current			2.5	W	@Turn on
Power	Current			0.8	W	@Stable
Tuning Range		±0.5			ppm
Controlled Voltage Range		0	-	5.0	VDC
Input Impedance		10			KΩ
Operable Temp. Range		-40		+95	℃
Storage Temp. Range		-55		+105	℃
Output Load		45		55	Ω
