80MHz OCXO DIP 1414 Package

High-Stability Oven Controlled Crystal Oscillator 80MHz | 14×14mm Compact SMT Package

Product Overview

The 80MHz OCXO series is a state-of-the-art Oven Controlled Crystal Oscillator designed for mission-critical RF and microwave applications. It delivers an industry-leading phase noise floor of -173dBc/Hz with exceptional frequency stability of ±0.3 ppm across an extended temperature range of -40°C to +95°C. Housed in a miniature 14x14mm SMT package, it provides the ultimate signal purity required for modern radar and high-end synthesizers where PCB space is limited.

Key Features

• Extreme Phase Noise Performance: Reaches -173 dBc/Hz noise floor at 100kHz offset.

• Compact Miniature Design: Small 14.0 x 14.0 mm surface mount footprint (SMT).

• High Temperature Capability: Reliable operation up to +95°C, suitable for military and aerospace environments.

• Tight Frequency Stability: ±0.3 ppm over the entire temperature range (-40°C to +95°C).

• Clean Sine Wave Output: High signal integrity with spurious suppression better than -80dBc.

• Frequency Control (EFC): Positive control slope for precise frequency adjustment via voltage (0-5.0VDC).

Applications

• Radar Systems: Low phase noise ensures superior target resolution and Doppler accuracy.

• High-End Instrumentation: Reference clocks for signal generators and spectrum analyzers.

• Satellite Communications (SATCOM): Stable reference for up/down conversion in ground stations.

• Radio Frequency (RF) Synthesis: Pure clock source for low-noise frequency synthesizers.

Specification

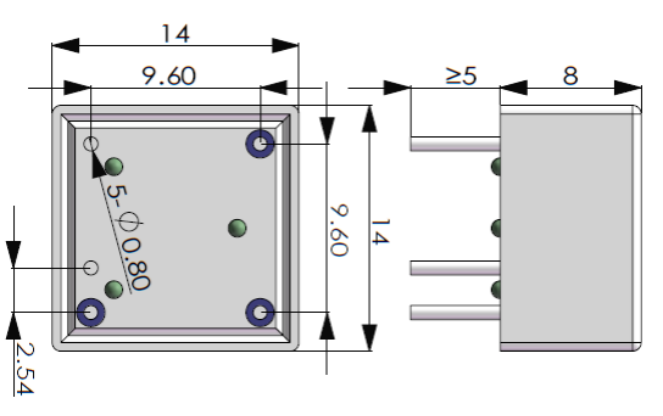

Dimension:

Pin function:

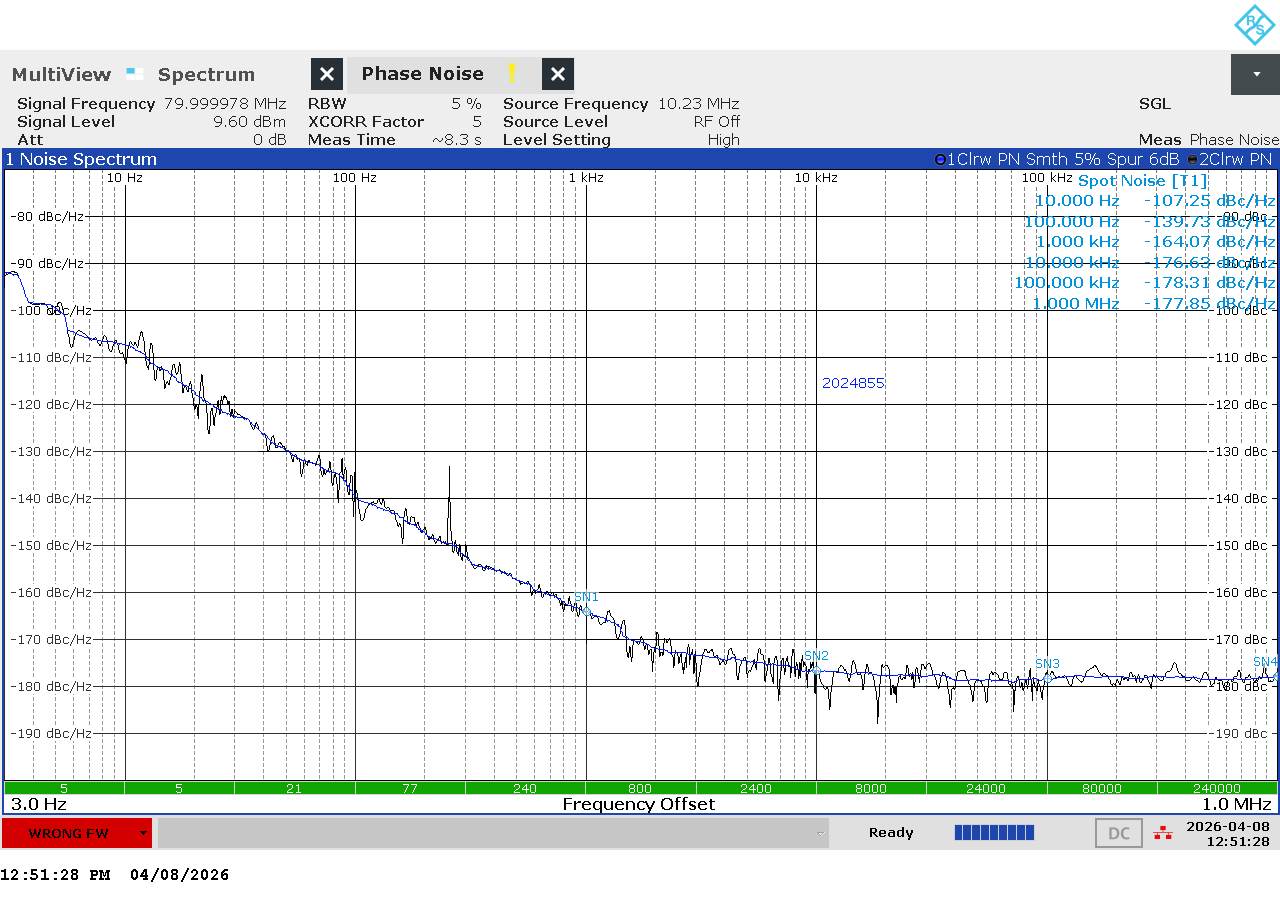

Phase noise plot:
