Frequency: 100MHz
Supply Voltage: 5V
Output: SInewave
Ambient: ±100ppb@-40~70℃
Dimension: 25.4*25.4mm

High-performance 100MHz OCXO with -178dBc/Hz phase noise at 10kHz. 5V supply, 3 min warm-up. Ideal for radar, test equipment, and communication base stations. Buy OCXO today for precision frequency control.

Features

Ultra-Low Phase Noise: -178dBc/Hz @ 10kHz.

High Stability: ±100ppb (-40°C to +70°C).

Output: 100MHz Sine Wave (+8dBm).

Fast Warm-up: < 3 minutes.

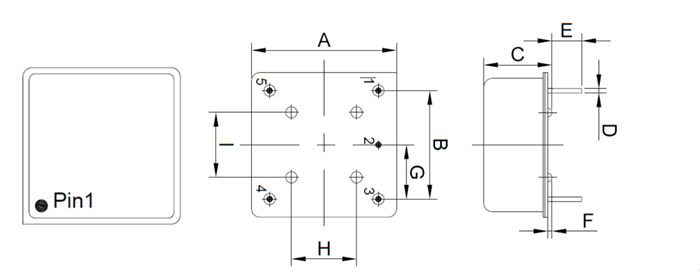

Size: Standard 25.4 x 25.4 mm.

Applications

5G/Satellite Communications.

Radar & Defense Systems.

Precision Test Instruments.

GPS/GNSS Timing.

Specifications

	Parameter		Min.	Type	Max.	Unit	Test Condition
Power consumption	Power Supply		4.75	5.0	5.25	VDC	Vcc±5%
	Current	Start-up Current			950	mA	@Vcc±5%,25℃
	Current	Operating Current			400	mA	@Vcc±5%,25℃
Output	Nominal Frequency		100.000			MHz
	Waveform		Sine wave			—--
	Output Power		8.0			dBm	Load: 50Ω
	Harmonic				-30	dBc	Load: 50Ω
	Spurious				-80	dBc	Load: 50Ω
	Load		47.5	50	52.5	Ω	Load ± 5%
Frequency Stability	Initial Frequency Accuracy		-100		+100	ppb	VC=2.5V @25℃, after 15mins power on refer to nominal frequency.
	Aging	Daily	-1.0		+1.0	ppb	Aging after 30 days operation
		Yearly	-150		+150	ppb
		Ten Years	-0.6		+0.6	ppm
	Temperature characteristics		-100		+100	ppb	-40℃～+70℃，refer to 25℃
	Power Characteristics		-10.0		+10.0	ppb	Vcc±5%
	Load Characteristics		-10.0		+10.0	ppb	Load ± 5%
	Warm-up Time				3.0	min	@25℃,Within ±100 ppb of final frequency refer to that on 1 hour.
	Phase Noise	@10Hz		-115		dBc/Hz
		@100Hz		-140		dBc/Hz
		@1KHz		-168		dBc/Hz
		@10KHz		-178		dBc/Hz
Frequency Tuning	Frequency Adjustment Method		Voltage Regulation (Voltage Control)			—--
	Voltage-Controlled Voltage Input (VC)		0～2.5～5.0			VDC
	Frequency Adjustment Range	VC=5.0V	+0.8			ppm
		VC=2.5V	-100		+100	ppb
		VC=0V			-0.8	ppm
	Slope		Positive			——-
	Linearity				10	%
	Voltage-Controlled Input Impedance		100			KΩ
Ambient Temperature	Operable Temperature Range		-40		85	℃
	Operating Temperature Range		-40		70	℃
	Storage Temperature Range		-55		105	℃
