Frequency: 100MHz
Supply Voltage: 5.0V
Waveform: Sinewave
Initial Accuracy at the reference temperature: ≤±10ppm
Temperature characteristics: ≤±20ppm@-40~85℃
A high-stability 100MHz sinewave oscillator for critical timing applications. Operating at 5.0V, it ensures reliable performance with an accuracy of ≤±10ppm and stability within ≤±20ppm across -40°C to 85°C. Ideal for telecommunications, test equipment, and high-speed data systems.
Parameter | Value | Unit | Test Condition | ||||
Min. | Type | Max. | |||||
Power consumption | Voltage | 5.0 | VDC | Vcc±2% | |||
Current | 30 | mA | |||||
Output | Nominal Frequency | 100.000 | MHz | ||||
Waveform | Sine wave | —-- | |||||
Output Power | 5.0 | dBm | |||||
Harmonic | -30 | dBc | |||||
Spurious | -70 | dBc | |||||
Load | 50 | Ω | |||||
Frequency Stability | Initial Accuracy at the reference temperature | -10 | +10 | ppm | 25℃ ± 2℃, at the time of shipment | ||
Temperature characteristics | -20 | +20 | ppm | -40～85℃ @25℃ | |||
Phase Noise | @1Hz | ——- | dBc/Hz | ||||
@10Hz | -85 | dBc/Hz | |||||
@100Hz | -120 | dBc/Hz | |||||
@1KHz | -145 | dBc/Hz | |||||
@10KHz | -160 | dBc/Hz | |||||
@100KHz | -165 | dBc/Hz | |||||
@1MHz | -165 | dBc/Hz | |||||
Ambient Temperature | Operating Temperature Range | -40 | 85 | ℃ | |||
Storage Temperature Range | -55 | 85 | ℃ | ||||

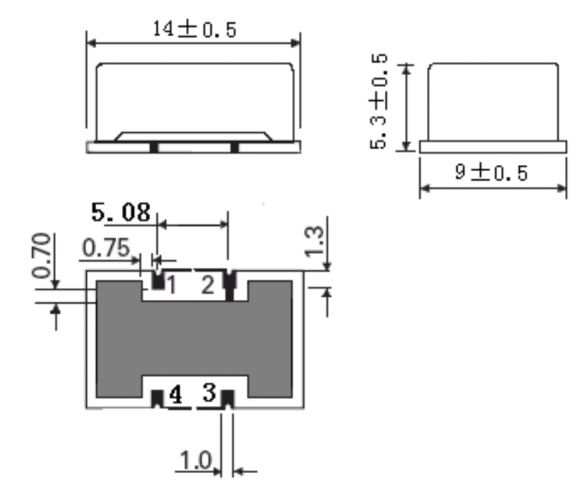

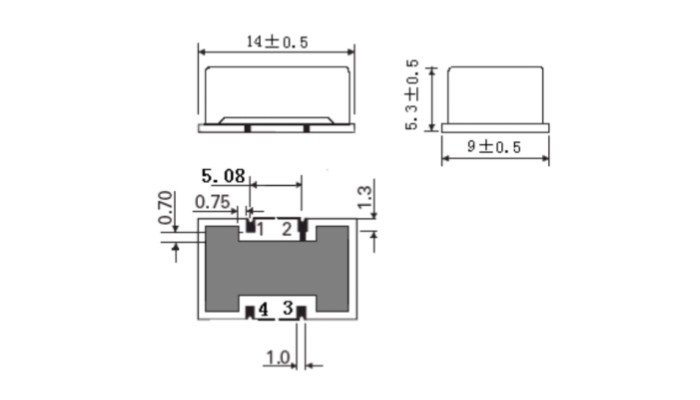

14×9×5.3mm | ||
Pin | Symbol | Electrical performance |
1 | NC | |
2 | GND | Ground |
3 | OUT | Frequency Out |
4 | VCC | Power input |
