Frequency Range: 24MHz ~ 96MHz
Standard Frequency: 26MHz, 30MHz, 32MHz

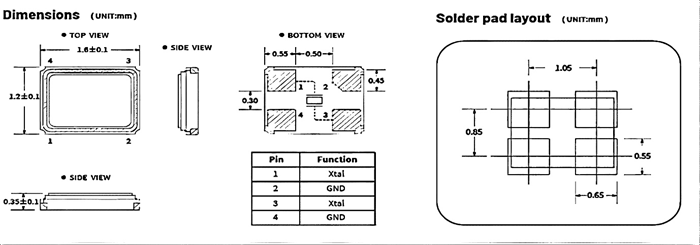

Dmiension: 1.6 * 1.2mm
Level of Drive: 10uW
采用工作频率为 24 MHz 的 SMD1612 石英晶体振荡器，助您实现精准的时序控制与卓越的稳定性。这款石英晶体振荡器是紧凑型电子设备的理想之选，可提供可靠的频率控制与极高的精度，确保其在严苛的应用环境中依然能保持始终如一的稳定性能。
**产品特性**
AT 切割晶体结构
高 Q 值石英晶体
低成本陶瓷小型封装（占板面积小）
高稳定性
**应用领域**
音频设备
便携式设备
短距离无线模块
计算机、调制解调器、微处理器
| Item | Symb. | Min. | Typ. | Max. | Unit | Notes |
| Frequency Range | Freq. | 24 | 54 | MHz | ||
| Oscillation Mode | Fundamental（AT-cut） | |||||
| Frequency Tolerance | △f/f | ±10 | ppm | at 25℃±2℃ | ||
| Operating Temperature | T_use | -20 | 70 | ℃ | ||
| -40 | 85 | ℃ | ||||
| Storage Temperature Range | T_sta | -55 | 125 | ℃ | ||
| Shunt Capacitance | C0 | 3 | pF | |||
| Drive Level | DL | 10 | 100 | μW | ||
| Load Capacitance | CL | 6 | 20 | pF | ||
| Equivalent Series Resistance | ESR | 200 | Ω | 24MHz≤ Freq. ＜32MHz | ||
| 100 | Ω | 32MHz≤ Freq. ＜36MHz | ||||
| 80 | Ω | 36MHz≤ Freq. ≤ 54MHz | ||||
| Insulation Resistance | IR | 500 | MΩ | at DC 100V | ||
| Aging | f_age | 3 | ppm | 1st. Year at 25℃ | ||

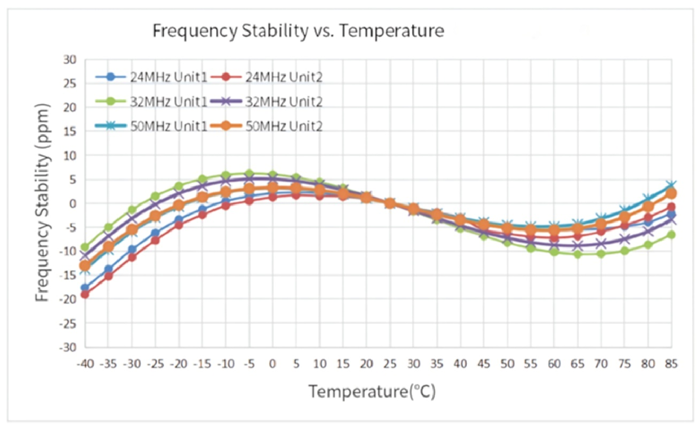

| Operating Temperature Range | Frequency Stability | |||
| ±10ppm | ±15ppm | ±20ppm | ±30ppm | |
| -20℃ to +70℃ | ▲ | ★ | ★ | ★ |
| -40℃ to +85℃ | ▲ | ★ | ★ | |
| ★：Available ▲：Conditional | ||||

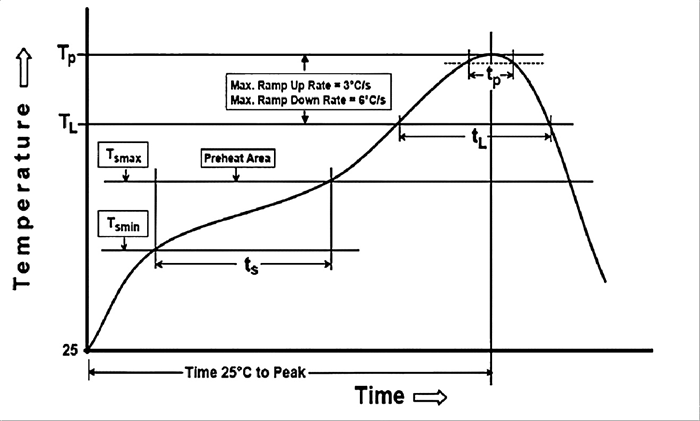

| Profile Feature | Sn-Pb Eutectic Assembly | Preheat/Soak |
| Preheat/Soak ● Temperature Min(Ts min) ● Temperature Max(Ts max) ● Time(Ts min to Ts max) | 100℃ 150℃ 60-120 seconds | 150℃ 200℃ 60-120 seconds |
| Ramp-up rate(TL to Tp) | 3℃/second max. | 3℃/second max. |
| Time maintained above ●Liquidous temperature(TL) ● Time(tL)maintained above TL | 183℃ 60-150 seconds | 217℃ 60-150 seconds |
| Peak package body temperature(Tp) | 235℃ | 260℃ |
| Time within 5°Cof the specified classification temperature(Tp) | 20 seconds | 30 seconds |
| Ramp-down rate(Tp to TL) | 6℃/second max. | 6℃/second max. |
| Time 25°Cto peak temperature | 6 minutes max. | 8 minutes max. |
| Suggust reflow times | 2 Times max. |
